Consider the deformable pin-jointed truss with loading, geometry and section properties as shown in the figure. Given that E = 2×10¹¹ N/m², A = 10 mm², L = 1 m and P = 1 kN. The horizontal displacement of Joint C (in mm, up to one decimal place) is _________

GATE 2018 Civil Engineering Q43 — Civil Engineering

GATE 2018Set CombinedQ43NATanswer keyexplanation soonmedium

Civil Engineering · Structural Analysis - Trusses

Concept intelligence

Drill mode: GATE CE · 5/7

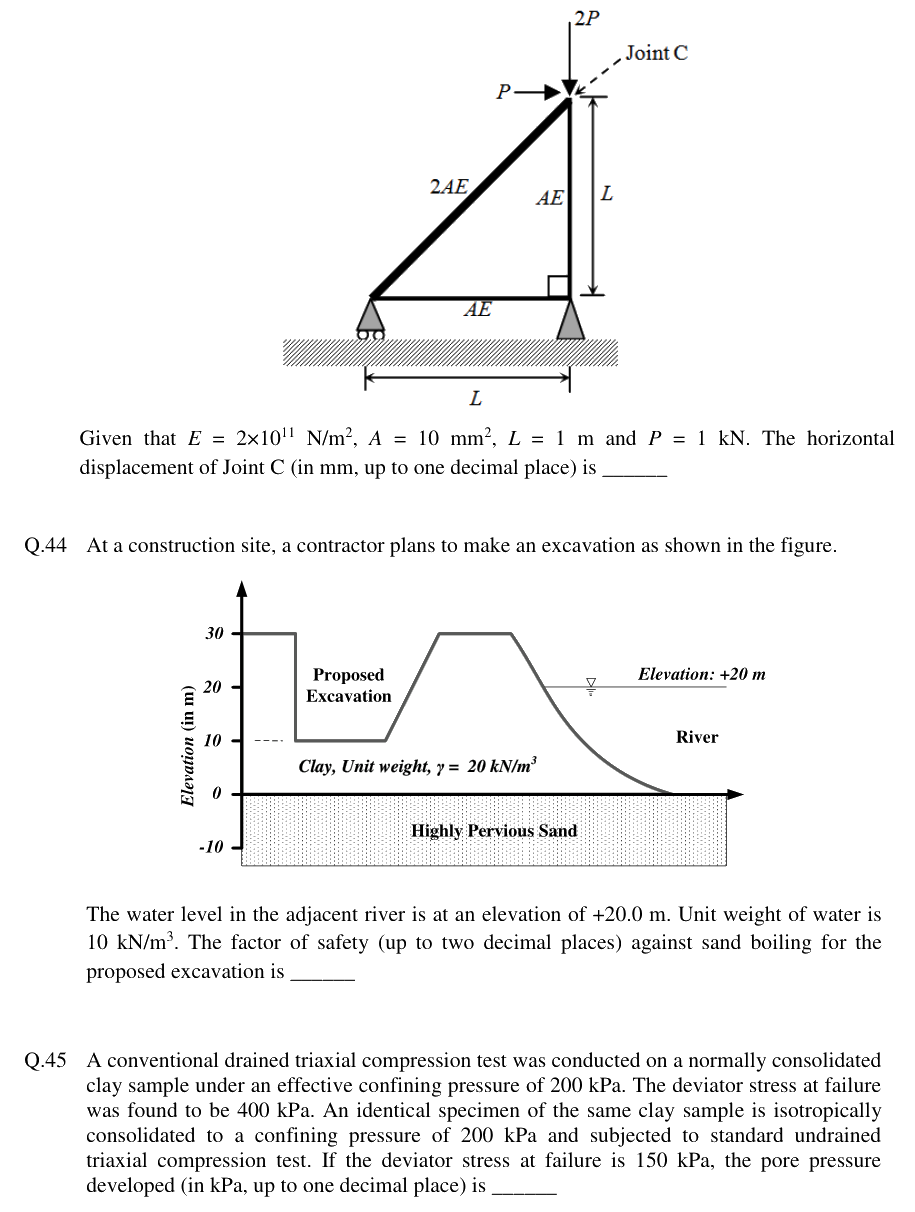

Figure from the original GATE 2018 paper. (IIT Guwahati archive)
