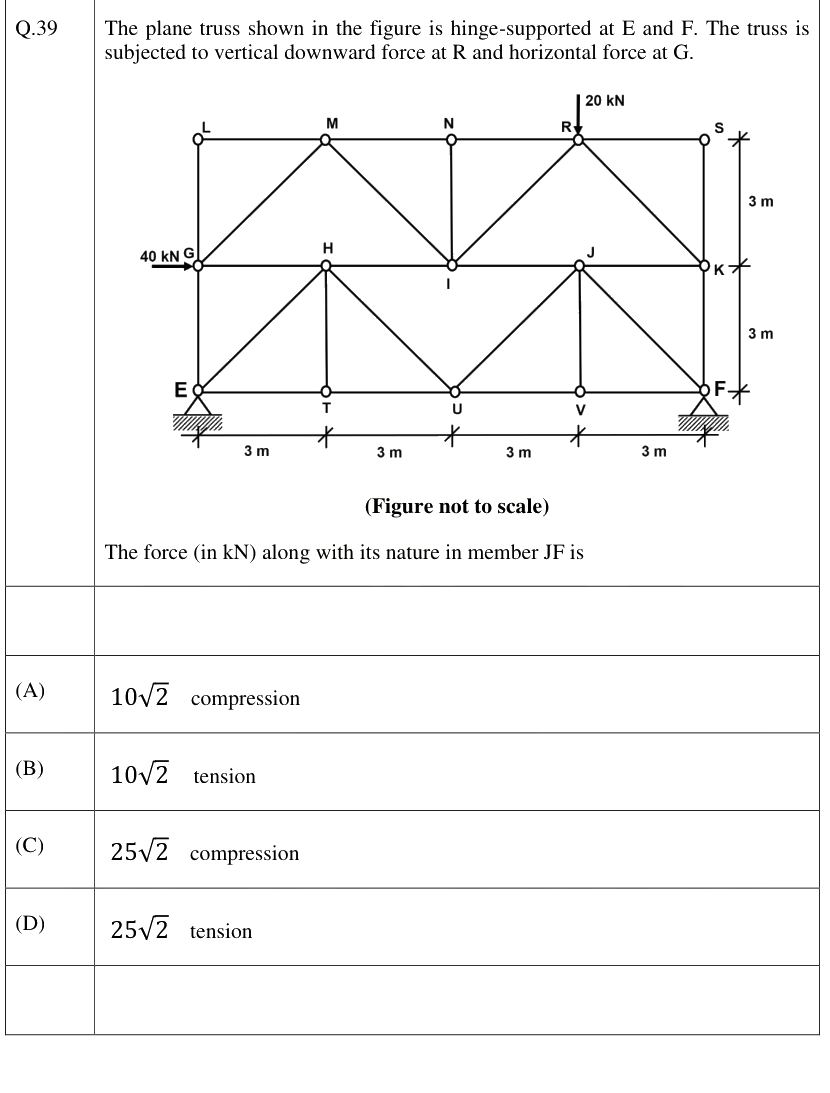

The plane truss shown in the figure is hinge-supported at E and F. The truss is subjected to vertical downward force at R and horizontal force at G. (Figure not to scale) The force (in kN) along with its nature in member JF is

GATE 2026 Civil Engineering Q39 — Civil Engineering

GATE 2026Shift 2Q39MCQanswer keyexplanation soonmedium

Civil Engineering · Structural Analysis - Trusses
