The plane truss shown in the figure is subjected to an external force P. It is given that P = 70 kN, a = 2 m, and b = 3 m. The magnitude (absolute value) of force (in kN) in member EF is ______. (round off to the nearest integer)

GATE 2022 Civil Engineering Q50 — Civil Engineering

GATE 2022Set 1Q50NATanswer keyexplanation soonmedium

Civil Engineering · Structural Analysis - Trusses

Concept intelligence

Jump into a concept drill from this question.

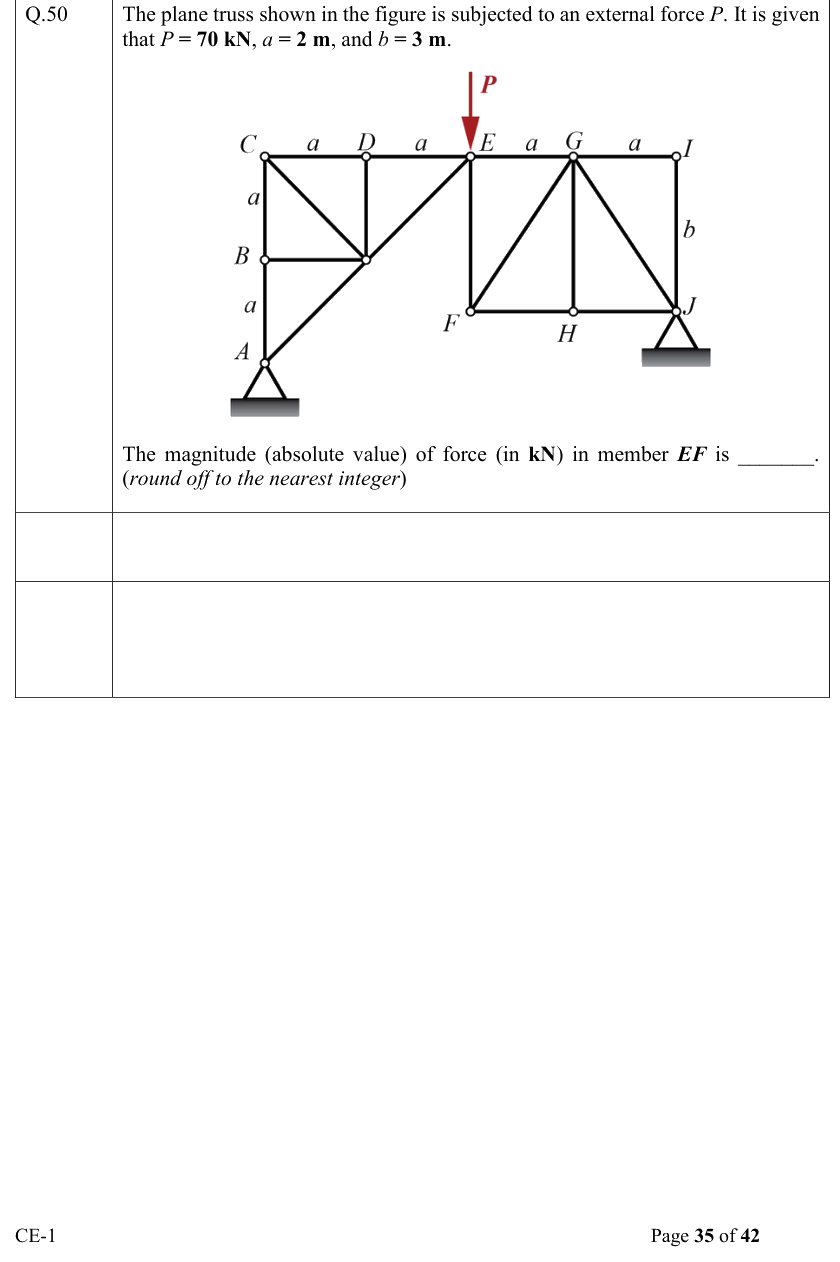

Figure from the original GATE 2022 paper. (IIT Kharagpur archive)
