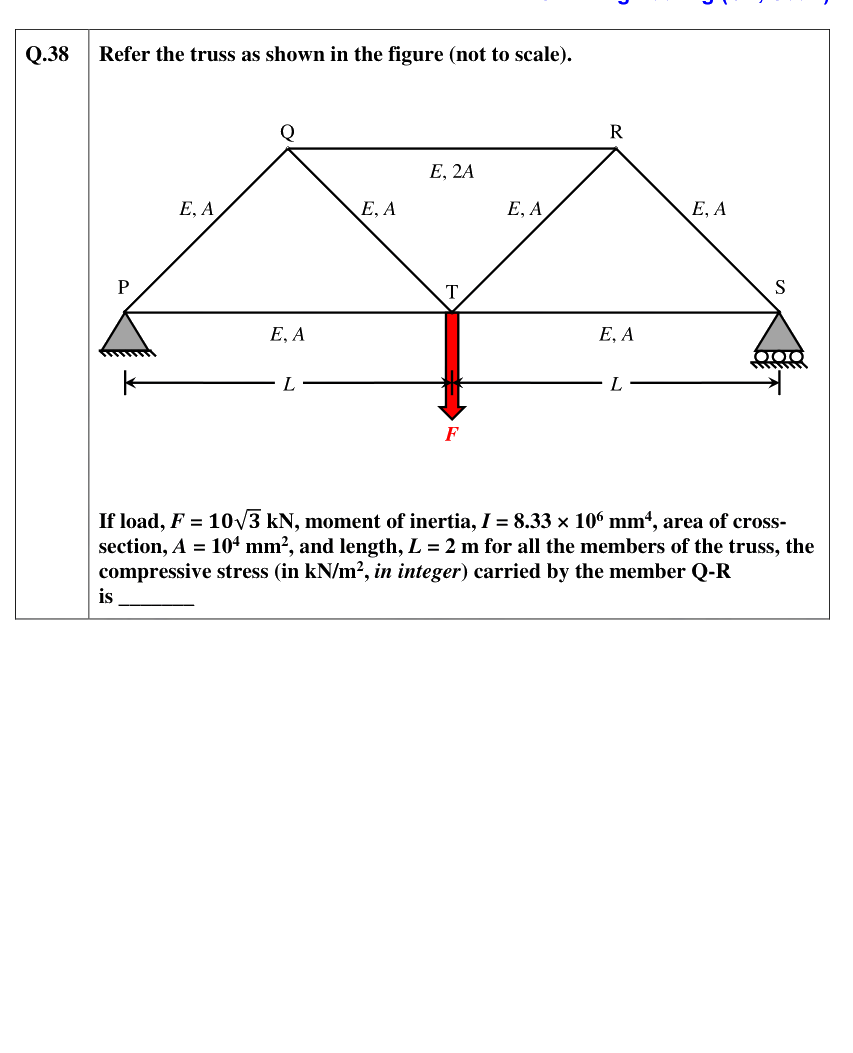

Figure from the original GATE 2021 paper. (IIT Bombay archive)
Studying seriously for GATE CSE?
Keep browsing free. Pro unlocks the paid study loop: explanations, topic mastery, mistake notebook, and custom PYQ drills.
See GATE CSE betaOpen notebookGATE 2021Set 1Q38NATanswer keyexplanation soonhard
Civil Engineering · Structural Analysis - Trusses
Concept intelligence
Jump into a concept drill from this question.
Recurring concept
See all 12 →Structural Analysis - Trusses has appeared in GATE Civil Engineering 12 times across 9 years (2022, 2023, 2024, 2025, 2026, ...).
More questions on Structural Analysis - Trusses
See all →- 2026 Q39The plane truss shown in the figure is hinge-supported at E and F. The truss is subjected to vertical downward...
- 2025 Q46In the pin-jointed truss shown in the figure, the members that carry zero force are identified. Which of the f...
- 2024 Q49The plane truss shown in the figure has 13 joints and 22 members. The truss is made of a homogeneous, prismati...
- 2023 Q54An idealised bridge truss is shown in the figure. The force in Member U2L3 is _________ kN (round off to one d...
- 2023 Q39Consider the pin-jointed truss shown in the figure (not to scale). All members have the same axial rigidity, A...
- 2022 Q50The plane truss shown in the figure is subjected to an external force P. It is given that P = 70 kN, a = 2 m,...
- 2020 Q5Consider the planar truss shown in the figure (not drawn to the scale) Neglecting self-weight of the members,...
- 2019 Q5A plane truss is shown in the figure (not drawn to scale). Which one of the options contains ONLY zero force m...
