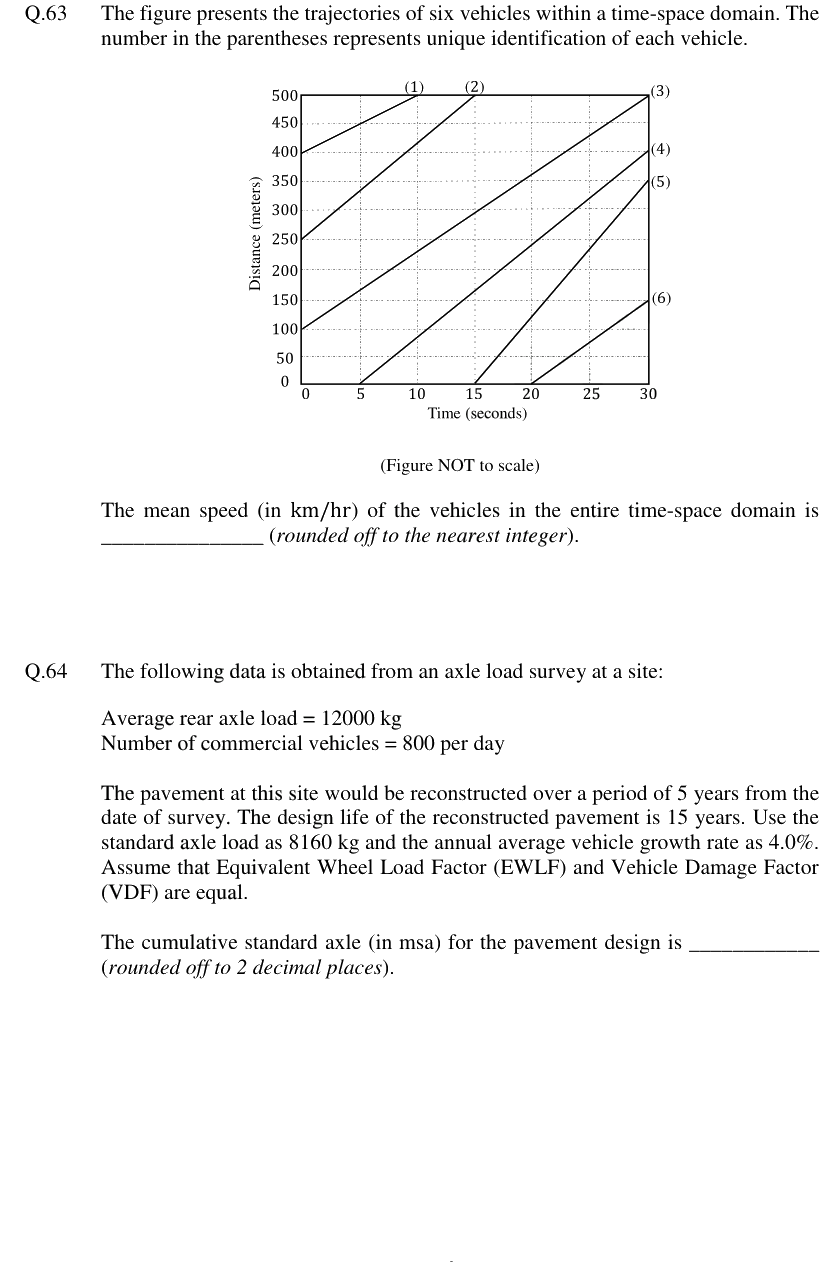

The figure presents the trajectories of six vehicles within a time-space domain. The number in the parentheses represents unique identification of each vehicle. (Figure NOT to scale) The mean speed (in km/hr) of the vehicles in the entire time-space domain is ____________ (rounded off to the nearest integer).

GATE 2024 Civil Engineering Q63 — Civil Engineering

GATE 2024Set 1Q63NATanswer keyexplanation soonmedium

Civil Engineering · Transportation Engineering - Traffic Flow Characteristics

Concept intelligence

Jump into a concept drill from this question.

Mastery map →

traffic flow speed time-space diagram transportation

Back to GATE 2024 Previous Next question

Figure from the original GATE 2024 paper. (IISc Bangalore archive)
