A plot of speed-density relationship (linear) of two roads (Road A and Road B) is shown in the figure. If the capacity of Road A is $C_A$ and the capacity of Road B is $C_B$, what is $\frac{C_A}{C_B}$?

GATE 2023 Civil Engineering Q46 — Civil Engineering

GATE 2023Set 1Q46MCQanswer keyexplanation soonmedium

Civil Engineering · Transportation Engineering - Traffic Flow Characteristics

Concept intelligence

Jump into a concept drill from this question.

Mastery map →

traffic flow speed-density capacity transportation

Back to GATE 2023 Previous Next question

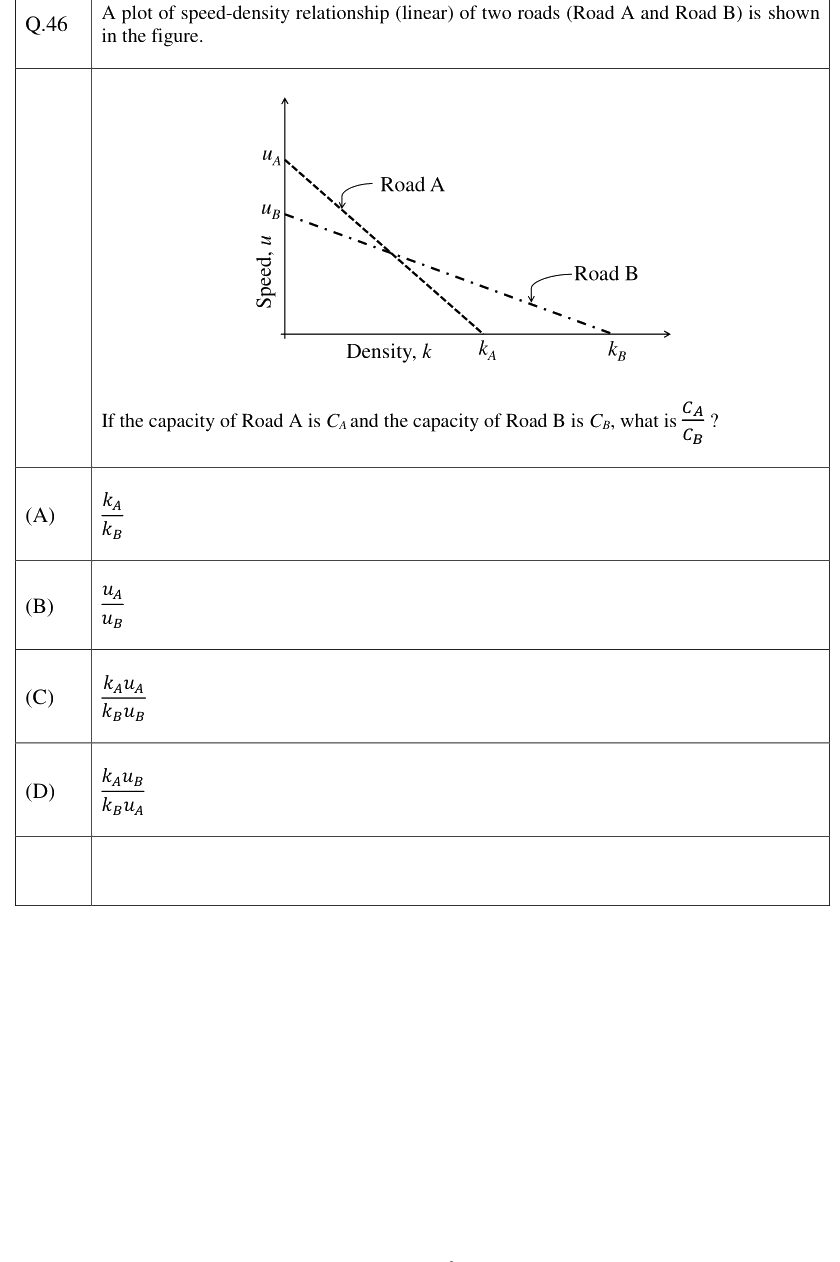

Figure from the original GATE 2023 paper. (IIT Kanpur archive)
