The figure shows a thin cylindrical pressure vessel constructed by welding plates together along a line that makes an angle $\alpha = 60^{\circ}$ with the horizontal. The closed vessel has a wall thickness of 10 mm and diameter of 2 m. When subjected to an internal pressure of 200 kPa, the magnitude of the normal stress acting on the weld is _________ MPa (rounded off to 1 decimal place).

GATE 2024 Mechanical Engineering Q57 — Mechanical Engineering

GATE 2024Set MasterQ57NATanswer pendingexplanation soonmedium

Mechanical Engineering · Pressure Vessels

Concept intelligence

Jump into a concept drill from this question.

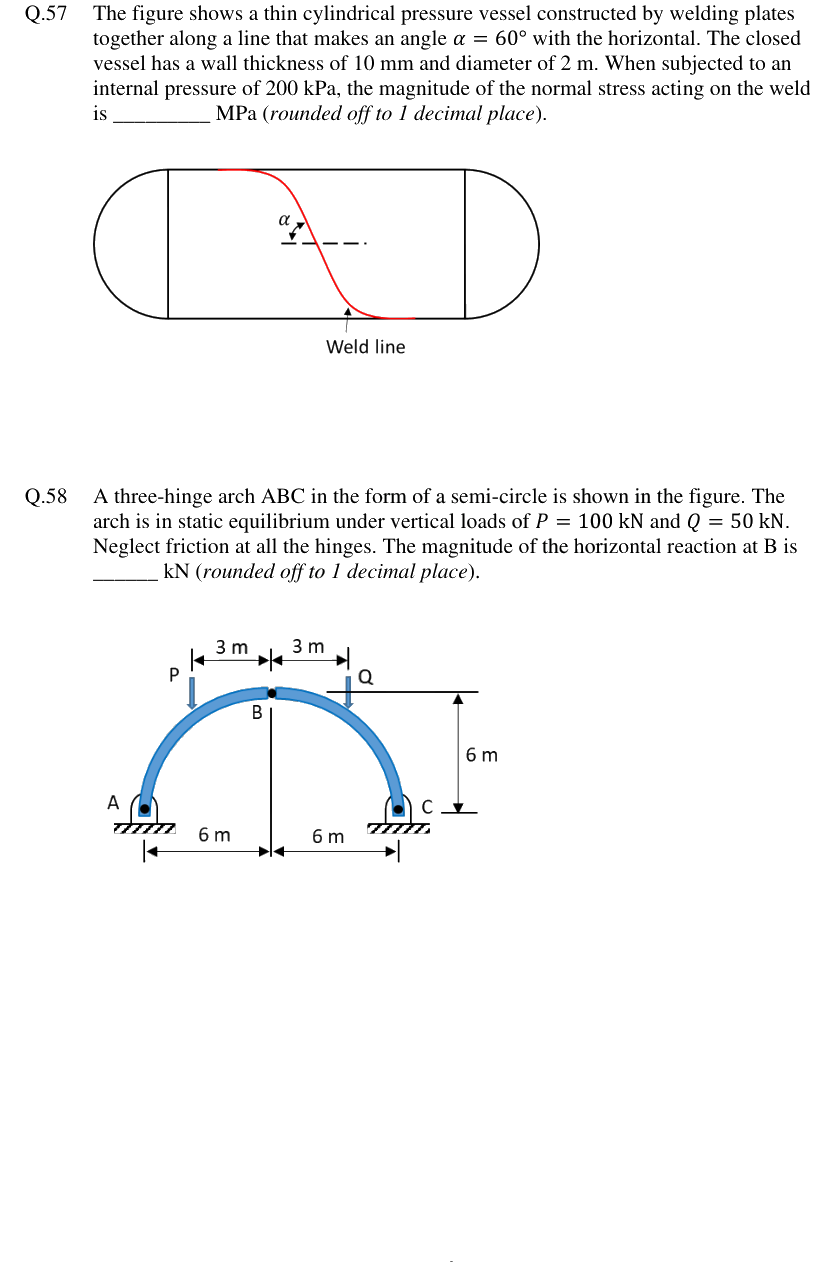

Figure from the original GATE 2024 paper. (IISc Bangalore archive)

Official answer key is not available for this question yet.

Studying seriously for GATE CSE?

Keep browsing free. Pro unlocks the paid study loop: explanations, topic mastery, mistake notebook, and custom PYQ drills.

Recurring concept

Pressure Vessels has appeared in GATE Mechanical Engineering 9 times across 8 years (2014, 2015, 2016, 2022, 2024, ...).
