GATE 2018 Electrical Engineering Q9

Question

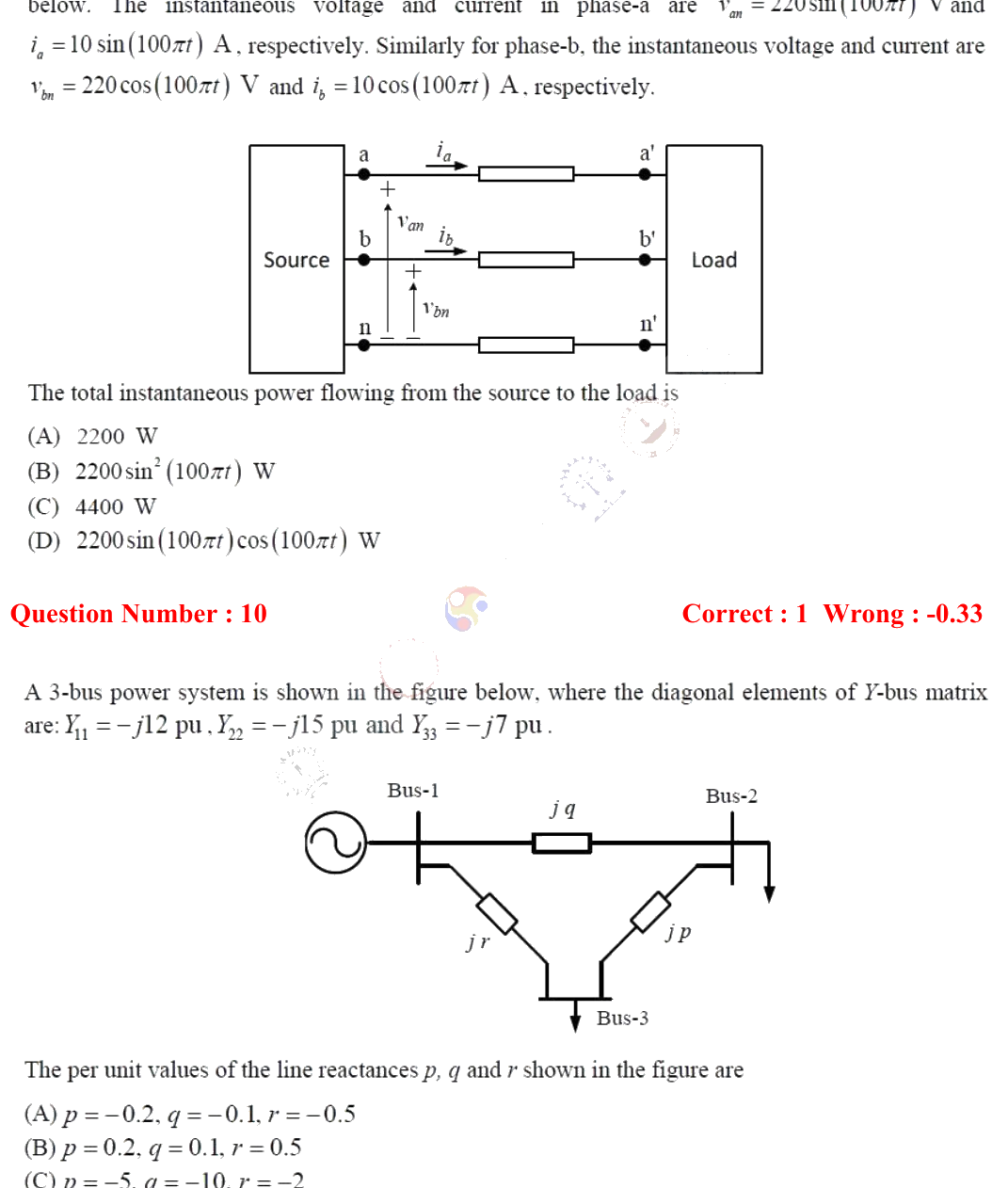

A source is supplying a load through a 2-phase, 3-wire transmission system as shown in figure below. The instantaneous voltage and current in phase-a are $v_{an} = 220 \sin (100\pi t)$ V and $i_a = 10 \sin(100\pi t)$ A, respectively. Similarly for phase-b, the instantaneous voltage and current are $v_{bn} = 220 \cos (100\pi t)$ V and $i_b = 10 \cos (100\pi t)$ A, respectively.
The total instantaneous power flowing from the source to the load is

Accepted Answer

4400 W

Answer

2200 W

Answer

$2200 \sin^2 (100\pi t)$ W

Answer

$2200 \sin (100\pi t)\cos(100\pi t)$ W
