GATE 2023 Electrical Engineering Q41

Question

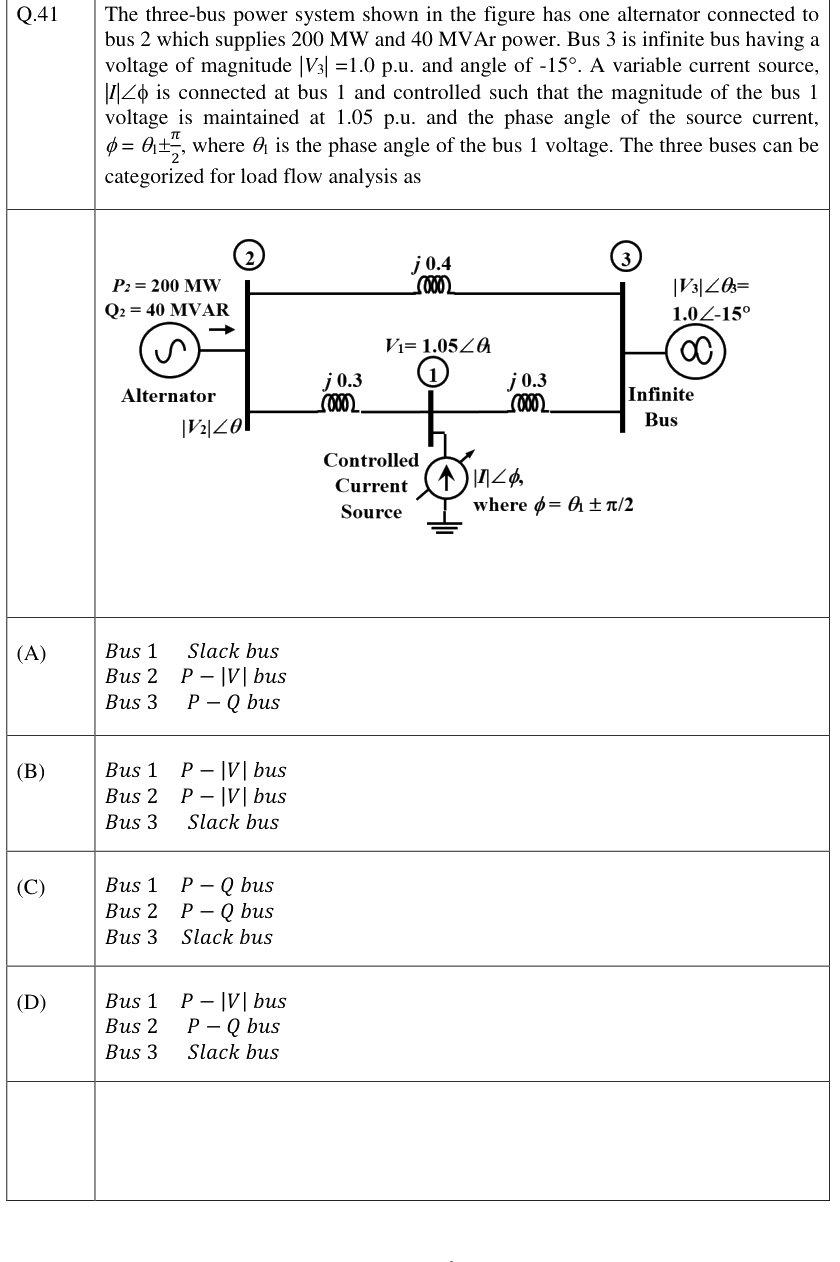

The three-bus power system shown in the figure has one alternator connected to bus 2 which supplies 200 MW and 40 MVAr power. Bus 3 is infinite bus having a voltage of magnitude |V3| =1.0 p.u. and angle of -15°. A variable current source, |I|∠φ is connected at bus 1 and controlled such that the magnitude of the bus 1 voltage is maintained at 1.05 p.u. and the phase angle of the source current, φ = θ1 ± π/2, where θ1 is the phase angle of the bus 1 voltage. The three buses can be categorized for load flow analysis as

Answer

Bus 1 Slack bus
Bus 2 P – |V| bus
Bus 3 P – Q bus

Answer

Bus 1 P – |V| bus
Bus 2 P – |V| bus
Bus 3 Slack bus

Answer

Bus 1 P – Q bus
Bus 2 P – Q bus
Bus 3 Slack bus

Answer

Bus 1 P – |V| bus
Bus 2 P – Q bus
Bus 3 Slack bus
