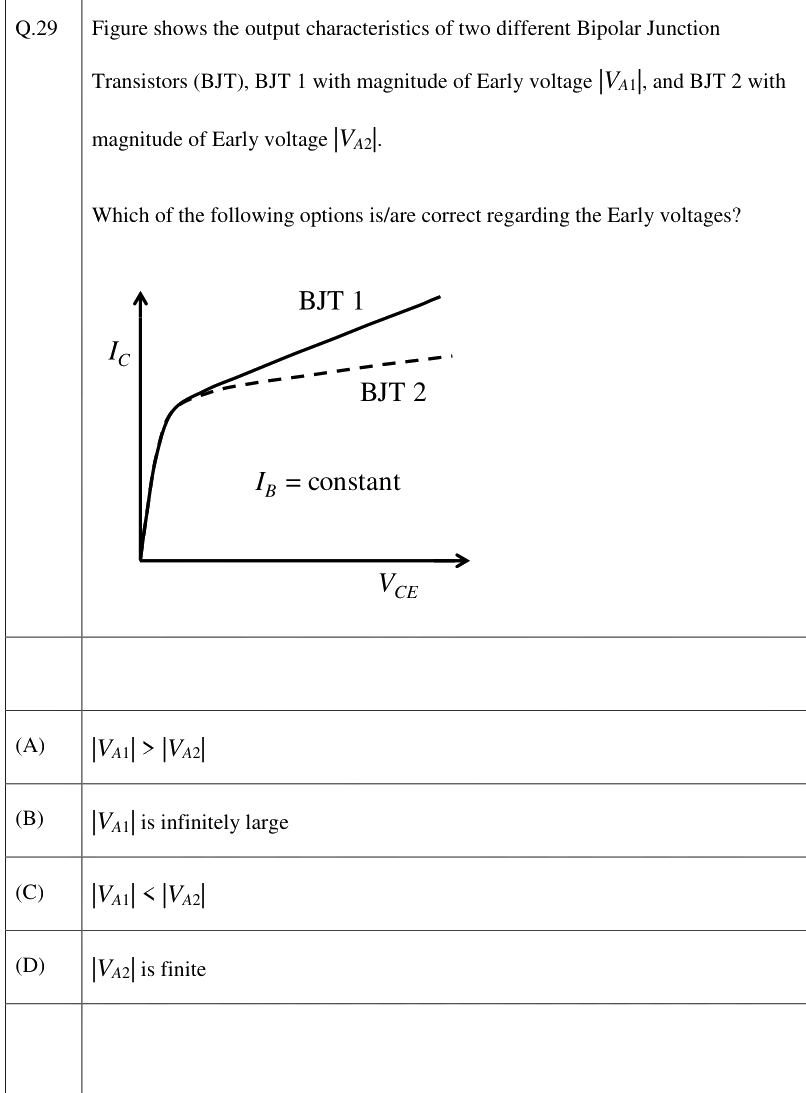

Figure shows the output characteristics of two different Bipolar Junction Transistors (BJT), BJT 1 with magnitude of Early voltage |V_A1|, and BJT 2 with magnitude of Early voltage |V_A2|. Which of the following options is/are correct regarding the Early voltages?

GATE 2026 Electronics & Communication Q29 — Electronics and Communication Engineerin

GATE 2026Shift 1Q29MCQanswer keyexplanation soonmedium

Electronics and Communication Engineering · Analog Electronics - BJT Characteristics
