GATE 2024 CSE & IT Q28

Question

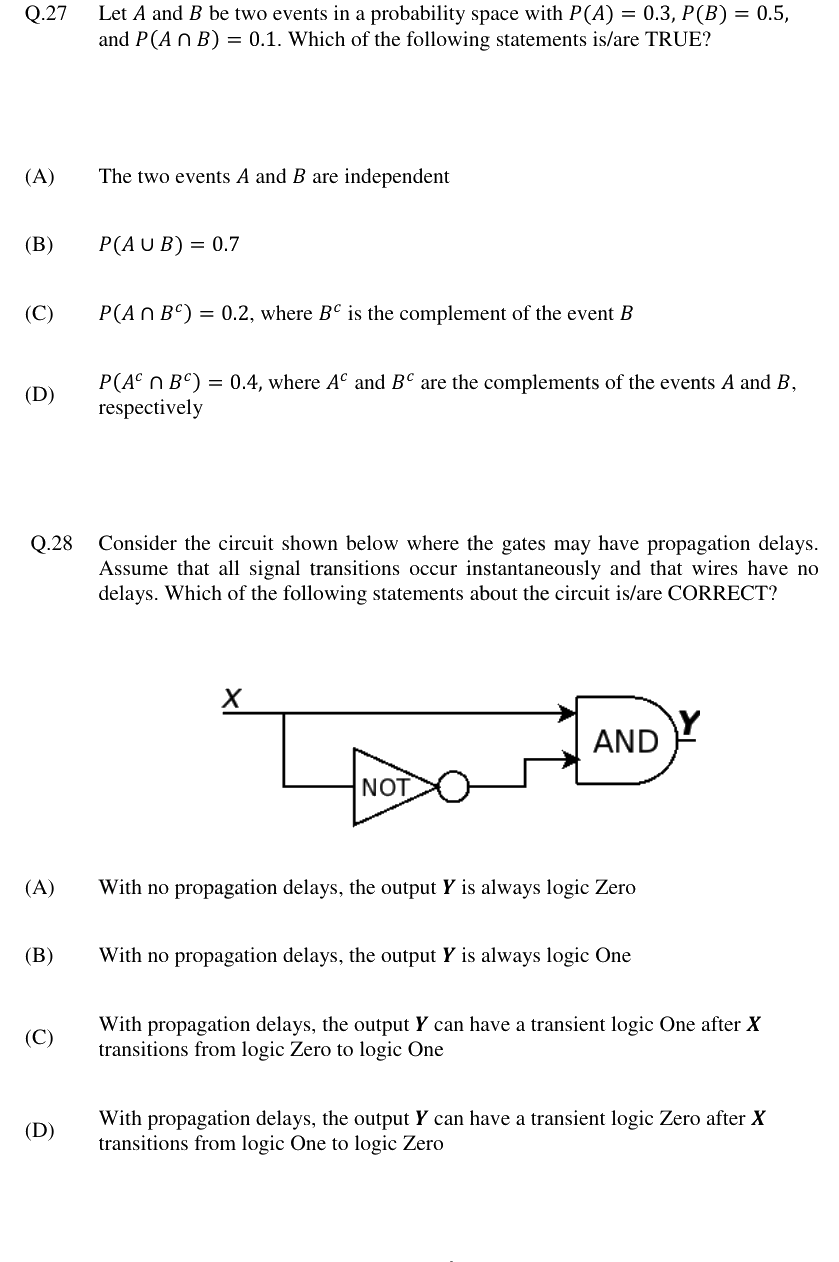

Consider the circuit shown below where the gates may have propagation delays. Assume that all signal transitions occur instantaneously and that wires have no delays. Which of the following statements about the circuit is/are CORRECT?

Accepted Answer

A;C

Answer

With no propagation delays, the output Y is always logic Zero

Answer

With no propagation delays, the output Y is always logic One

Answer

With propagation delays, the output Y can have a transient logic One after X transitions from logic Zero to logic One

Answer

With propagation delays, the output Y can have a transient logic Zero after X transitions from logic One to logic Zero
