GATE 2021Set 1Q4DIAGRAManswer keyexplanation soonmedium
Civil Engineering · Structural Analysis - Influence Line Diagram
Concept intelligence
Jump into a concept drill from this question.
Mastery map →
propped cantileverinfluence line diagramshear forcemoving load
Back to GATE 2021PreviousNext question

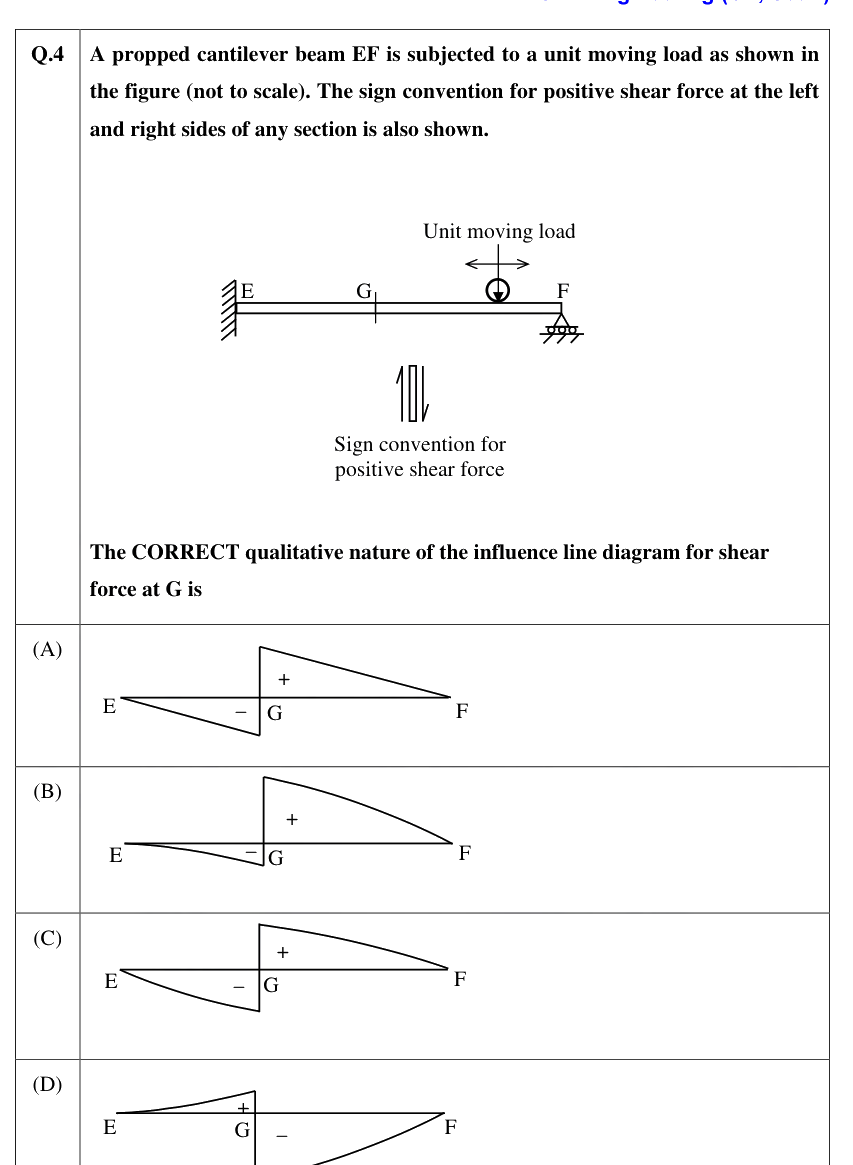

Figure context for GATE 2021 Q4
Figure from the original GATE 2021 paper. (IIT Bombay archive)
  1. A.
  2. B.
  3. C.
  4. D.
