A combined trapezoidal footing of length L supports two identical square columns (P1 and P2) of size 0.5 m × 0.5 m, as shown in the figure. The columns P1 and P2 carry loads of 2000 kN and 1500 kN, respectively. If the stress beneath the footing is uniform, the length of the combined footing L (in m, round off to two decimal places) is

GATE 2021 Civil Engineering Q46 — Civil Engineering

GATE 2021Set 1Q46NATanswer keyexplanation soonmedium

Civil Engineering · Geotechnical Engineering - Foundation Design

Concept intelligence

Jump into a concept drill from this question.

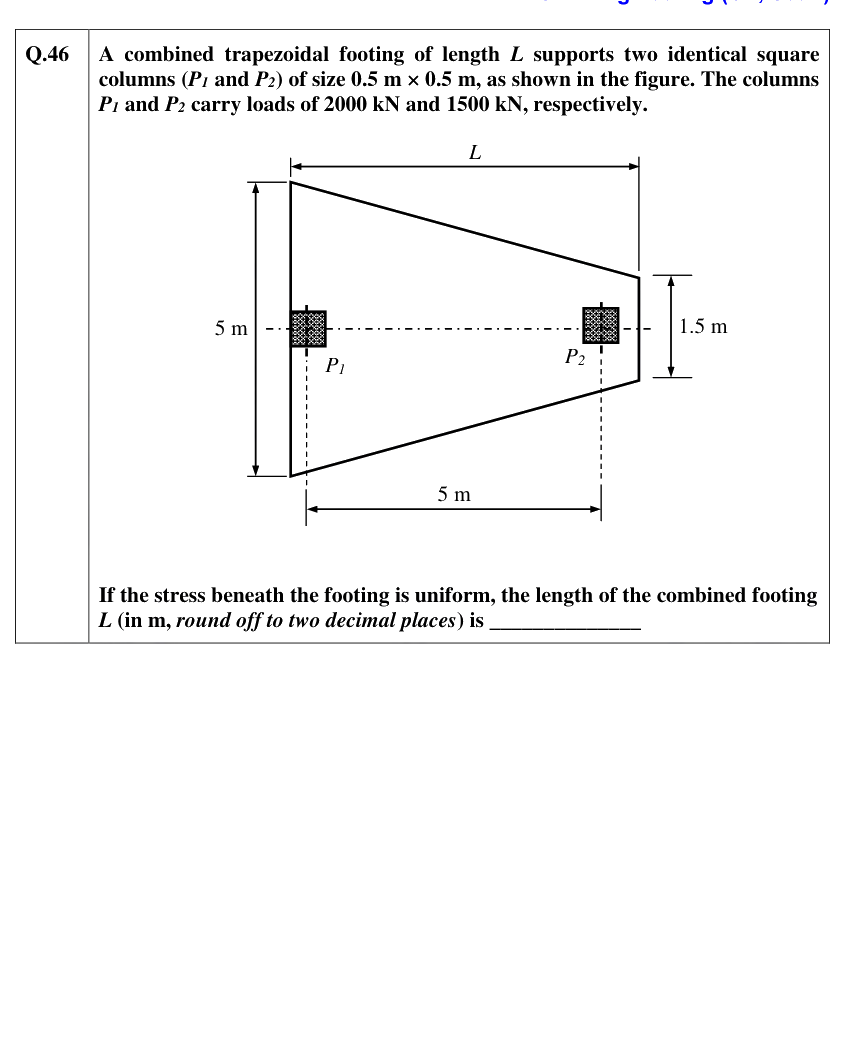

Figure from the original GATE 2021 paper. (IIT Bombay archive)
