GATE 2021 Civil Engineering Q47

Question

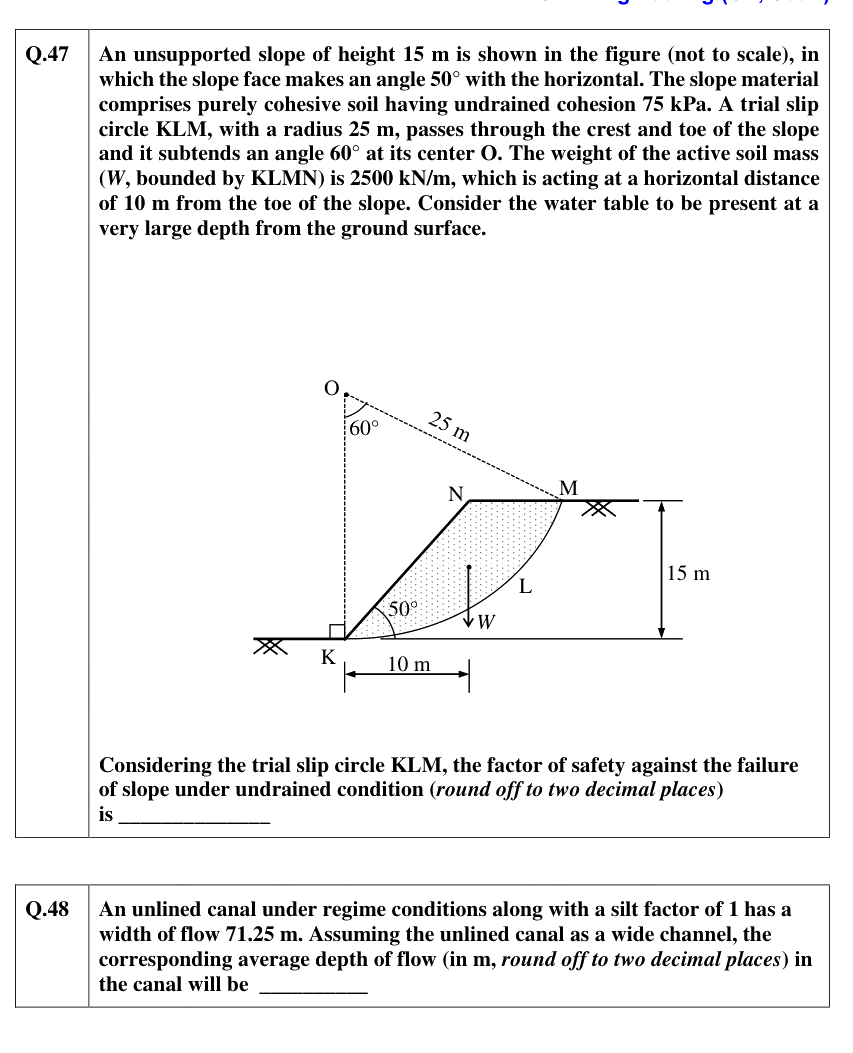

An unsupported slope of height 15 m is shown in the figure (not to scale), in which the slope face makes an angle 50° with the horizontal. The slope material comprises purely cohesive soil having undrained cohesion 75 kPa. A trial slip circle KLM, with a radius 25 m, passes through the crest and toe of the slope and it subtends an angle 60° at its center O. The weight of the active soil mass (W, bounded by KLMN) is 2500 kN/m, which is acting at a horizontal distance of 10 m from the toe of the slope. Consider the water table to be present at a very large depth from the ground surface.
Considering the trial slip circle KLM, the factor of safety against the failure of slope under undrained condition (round off to two decimal places) is ________

Accepted Answer

1.94 to 1.98
