Consider a simply supported beam PQ as shown in the figure. A truck having 100 kN on the front axle and 200 kN on the rear axle, moves from left to right. The spacing between the axles is 3 m. The maximum bending moment at point R is _________ kNm. (in integer)

GATE 2022 Civil Engineering Q52 — Civil Engineering

GATE 2022Set 1Q52NATanswer keyexplanation soonmedium

Civil Engineering · Structural Analysis - Bending Moment

Concept intelligence

Jump into a concept drill from this question.

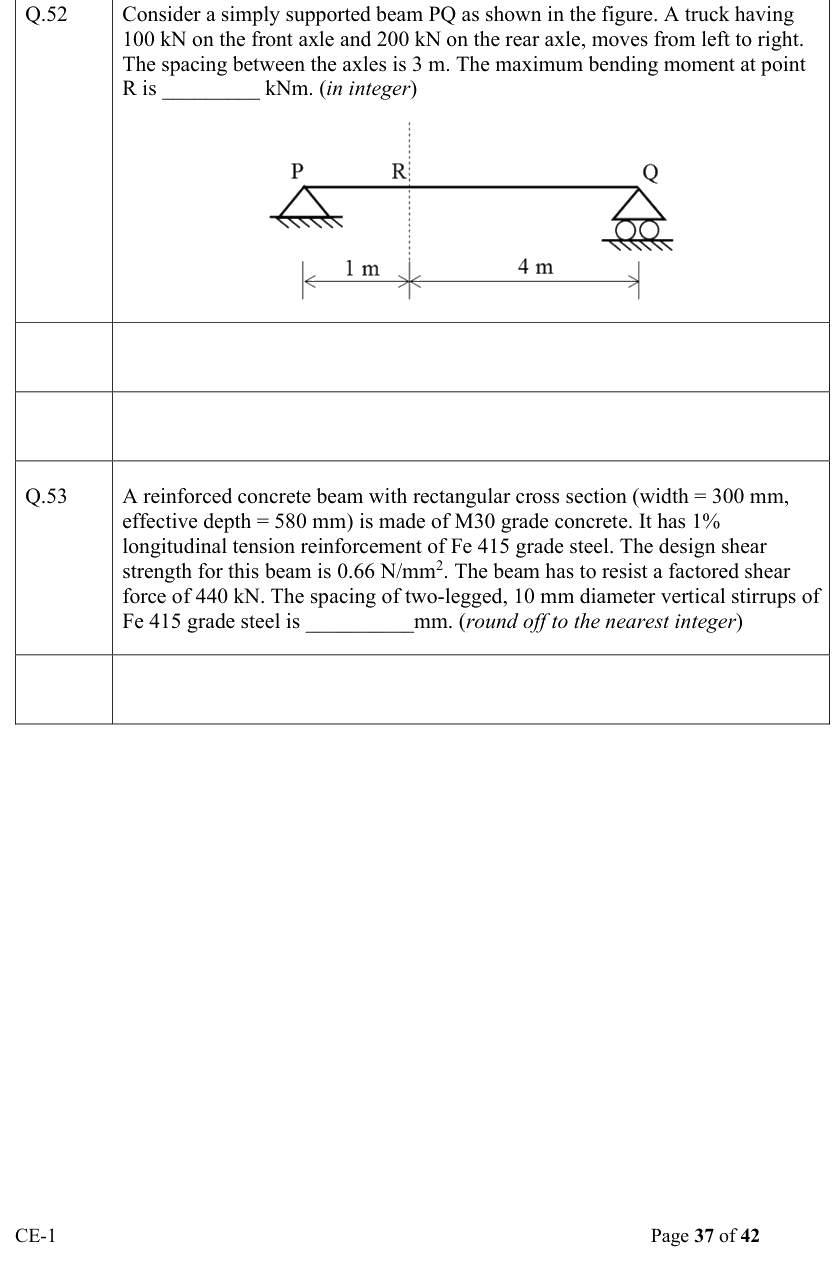

Figure from the original GATE 2022 paper. (IIT Kharagpur archive)
