Two reservoirs are connected by two parallel pipes of equal length and of diameters 20 cm and 10 cm, as shown in the figure (not drawn to scale). When the difference in the water levels of the reservoirs is 5 m, the ratio of discharge in the larger diameter pipe to the discharge in the smaller diameter pipe is __________. (round off to two decimal places) (Consider only loss due to friction and neglect all other losses. Assume the friction factor to be the same for both the pipes)

GATE 2022 Civil Engineering Q57 — Civil Engineering

GATE 2022Set 1Q57NATanswer keyexplanation soonmedium

Civil Engineering · Fluid Mechanics - Pipe Flow

Concept intelligence

Jump into a concept drill from this question.

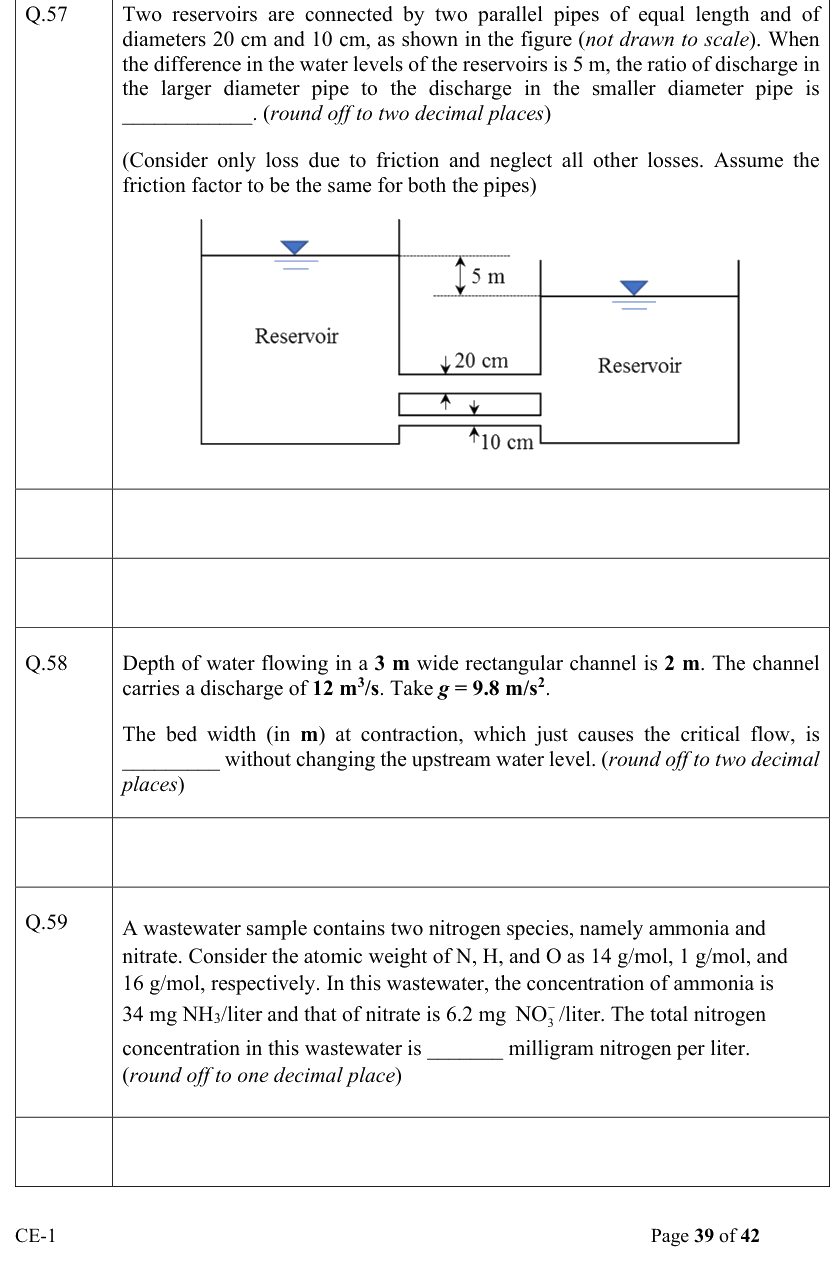

Figure from the original GATE 2022 paper. (IIT Kharagpur archive)

Your answer

Studying seriously for GATE CSE?

Keep browsing free. Pro unlocks the paid study loop: explanations, topic mastery, mistake notebook, and custom PYQ drills.

Recurring concept

Fluid Mechanics - Pipe Flow has appeared in GATE Civil Engineering 8 times across 6 years (2021, 2022, 2024, 2025, 2026, ...).

More questions on Fluid Mechanics - Pipe Flow

📊 has diagram∑ has math

fluid mechanicspipe flowdischargefriction loss
