GATE 2025Set 2Q14DIAGRAManswer keyexplanation soonmedium
Civil Engineering · Structural Analysis - Influence Lines
Concept intelligence
Jump into a concept drill from this question.
Mastery map →
trussinfluence lineaxial forcestructural analysis
Back to GATE 2025PreviousNext question

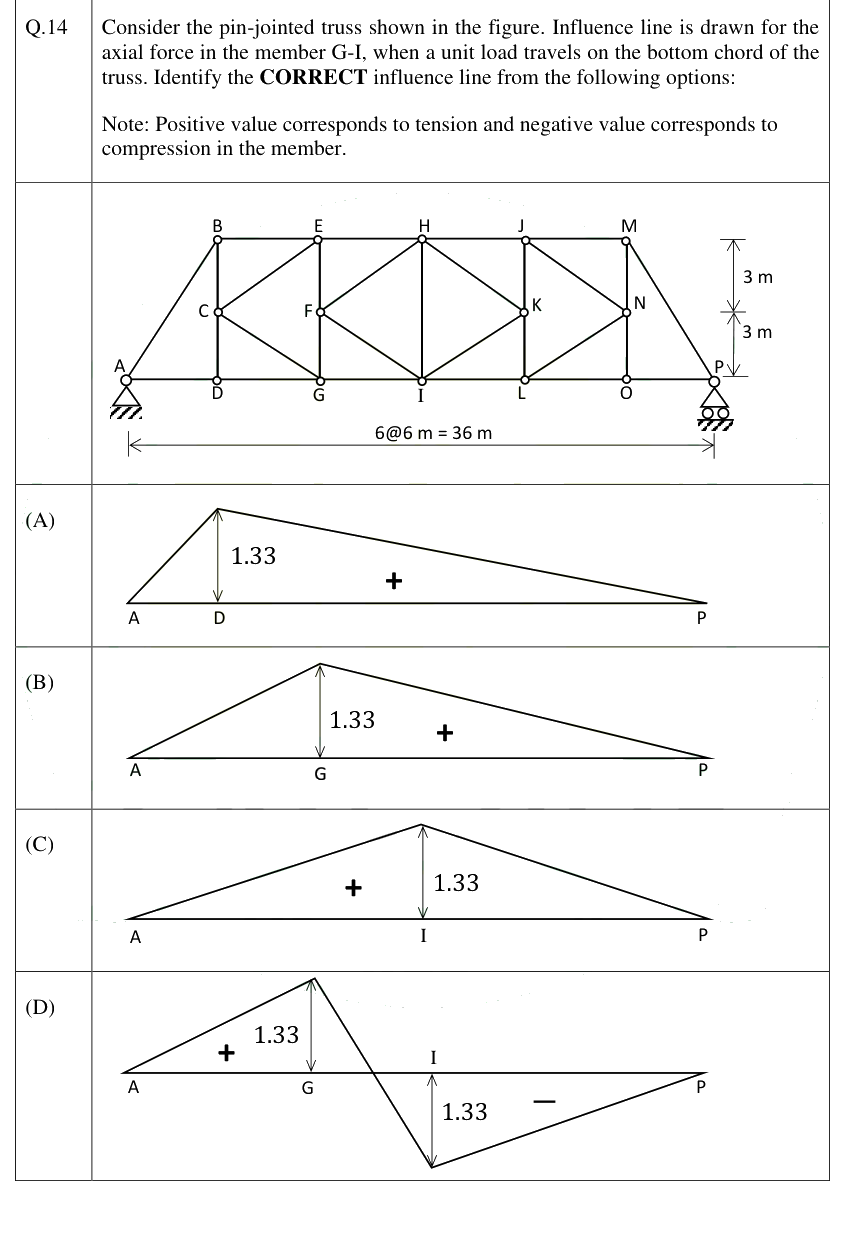

Figure context for GATE 2025 Q14
Figure from the original GATE 2025 paper. (IIT Roorkee archive)
  1. A.
  2. B.
  3. C.
  4. D.
Studying seriously for GATE CSE?

Keep browsing free. Pro unlocks the paid study loop: explanations, topic mastery, mistake notebook, and custom PYQ drills.

See GATE CSE betaOpen notebook
Recurring concept
See all 2 →

Structural Analysis - Influence Lines has appeared in GATE Civil Engineering 2 times across 2 years (2023, 2025).
