The plane frame shown in the figure has fixed support at joint A, hinge support at joint F, and roller support at joint I. In the figure, A to I indicate joints of the frame. If the axial deformations are neglected, the degree of kinematic indeterminacy is ________ (in integer).

GATE 2024 Civil Engineering Q33 — Civil Engineering

GATE 2024Set 1Q33NATanswer keyexplanation soonmedium

Civil Engineering · Structural Analysis - Indeterminacy

Concept intelligence

Jump into a concept drill from this question.

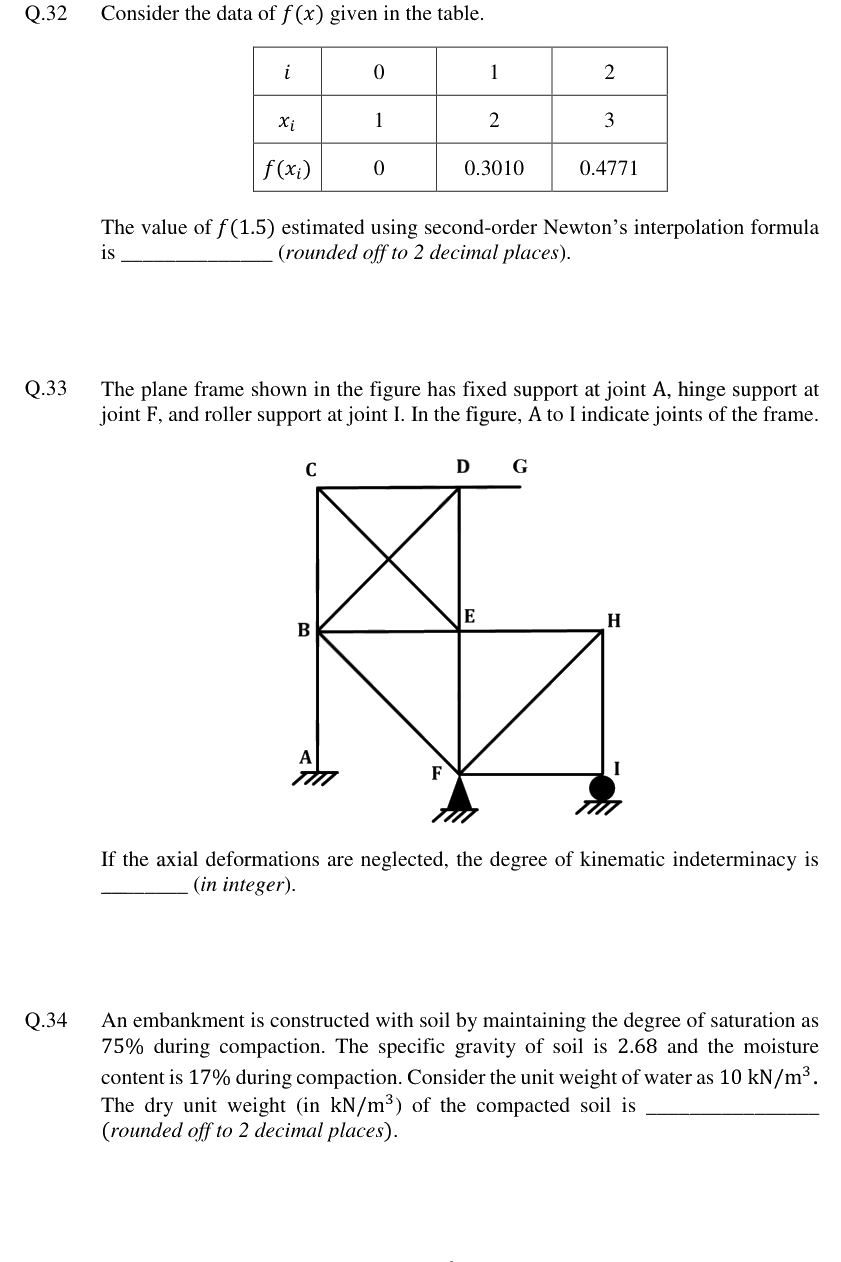

Figure from the original GATE 2024 paper. (IISc Bangalore archive)

Your answer

Studying seriously for GATE CSE?

Keep browsing free. Pro unlocks the paid study loop: explanations, topic mastery, mistake notebook, and custom PYQ drills.

Recurring concept

Structural Analysis - Indeterminacy has appeared in GATE Civil Engineering 4 times across 4 years (2018, 2019, 2022, 2024).
