The system shown in the figure below consists of a cantilever beam (with flexural rigidity $EI$ and negligible mass), a spring (with spring constant $K$ and negligible mass) and a block of mass $m$. Assuming a lumped parameter model for the system, the fundamental natural frequency ($\omega_n$) of the system is

$\sqrt{\frac{3EI}{L^3} + K \over m}$

$\sqrt{\frac{EI}{L^3} + K \over m}$

$\sqrt{\frac{3EI}{L^3} + K \over 2m}$

$\sqrt{\frac{EI}{L^3} + K \over 2m}$

GATE 2025 Mechanical Engineering Q42 — Mechanical Engineering

GATE 2025Set MasterQ42MCQanswer keyexplanation soonmedium

Mechanical Engineering · Vibrations

Concept intelligence

Jump into a concept drill from this question.

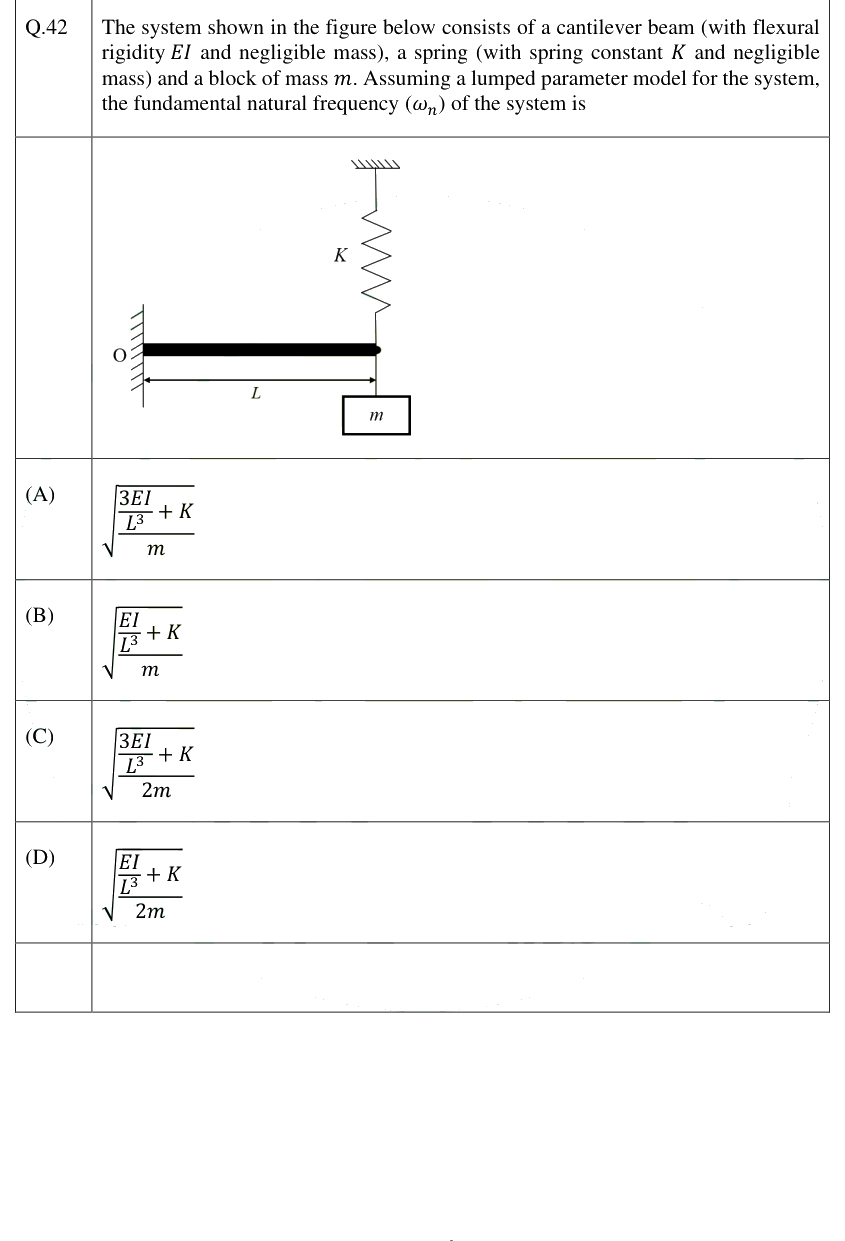

Figure from the original GATE 2025 paper. (IIT Roorkee archive)
