Consider a prismatic straight beam of length L = π m, pinned at the two ends as shown in the figure. The beam has a square cross-section of side p = 6 mm. The Young's modulus E = 200 GPa, and the coefficient of thermal expansion α = 3 × 10⁻⁶ K⁻¹. The minimum temperature rise required to cause Euler buckling of the beam is ________ K.

GATE 2019 Mechanical Engineering Q40 — Mechanical Engineering

GATE 2019Set 1Q40NATanswer keyexplanation soonmedium

Mechanical Engineering · Strength of Materials - Buckling

Concept intelligence

Jump into a concept drill from this question.

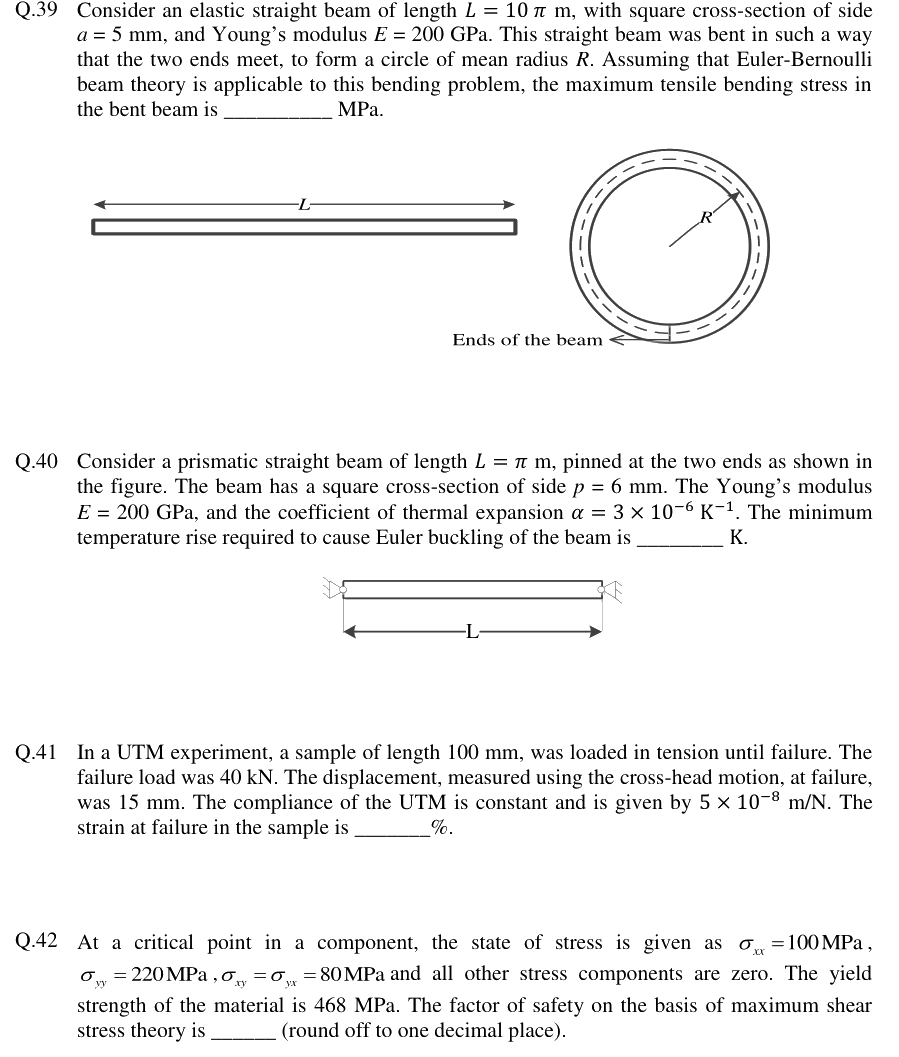

Figure from the original GATE 2019 paper. (IIT Madras archive)

Your answer

Studying seriously for GATE CSE?

Keep browsing free. Pro unlocks the paid study loop: explanations, topic mastery, mistake notebook, and custom PYQ drills.

Recurring concept

Strength of Materials - Buckling has appeared in GATE Mechanical Engineering 4 times across 2 years (2018, 2019).

More questions on Strength of Materials - Buckling

📊 has diagram∑ has math

Euler bucklingthermal expansionpinned endsbeam
