GATE 2019 Mechanical Engineering Q32

Question

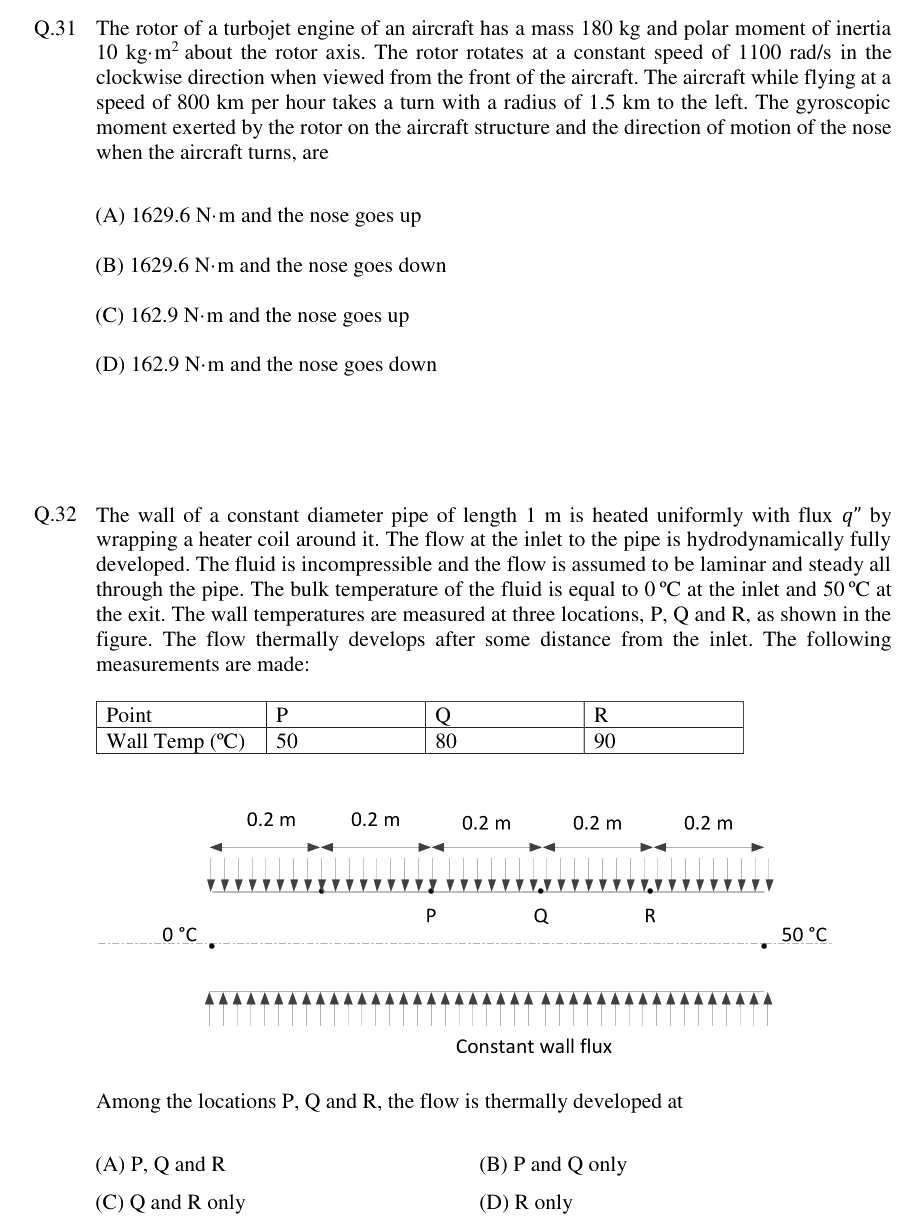

The wall of a constant diameter pipe of length 1 m is heated uniformly with flux q" by wrapping a heater coil around it. The flow at the inlet to the pipe is hydrodynamically fully developed. The fluid is incompressible and the flow is assumed to be laminar and steady all through the pipe. The bulk temperature of the fluid is equal to 0°C at the inlet and 50 °C at the exit. The wall temperatures are measured at three locations, P, Q and R, as shown in the figure. The flow thermally develops after some distance from the inlet. The following measurements are made:

Among the locations P, Q and R, the flow is thermally developed at

Accepted Answer

Q and R only

Answer

P, Q and R

Answer

P and Q only

Answer

R only
