An isotropic brittle material is tested in the universal testing machine. The stress-strain diagram for the material shows a bi-linear elastic behavior as shown in the figure given below. The strain energy density is ________ MJ m⁻³ (rounded off to 2 decimal places).

GATE 2025 Mechanical Engineering Q58 — Mechanical Engineering

GATE 2025Set MasterQ58NATanswer keyexplanation soonmedium

Mechanical Engineering · Strength of Materials

Concept intelligence

Jump into a concept drill from this question.

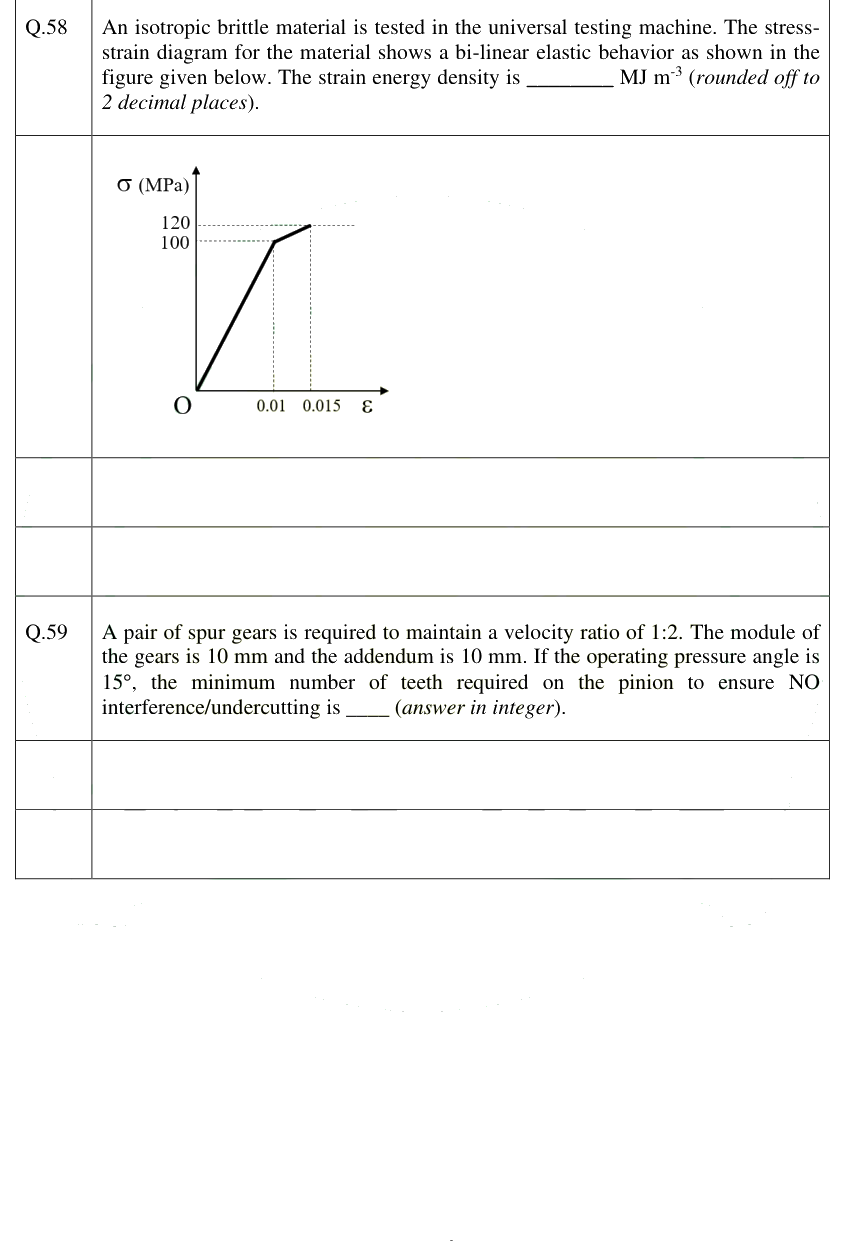

Figure from the original GATE 2025 paper. (IIT Roorkee archive)

Your answer

Studying seriously for GATE CSE?

Keep browsing free. Pro unlocks the paid study loop: explanations, topic mastery, mistake notebook, and custom PYQ drills.

Recurring concept

Strength of Materials has appeared in GATE Mechanical Engineering 8 times across 6 years (2019, 2021, 2023, 2024, 2025, ...).
