For the circuit shown in the figure below, it is given that $V_{CE} = \frac{V_{CC}}{2}$. The transistor has $\beta = 29$ and $V_{BE} = 0.7$ V when the B-E junction is forward biased. For this circuit, the value of $\frac{R_B}{R}$ is

GATE 2018 Electrical Engineering Q37 — Electronics and Communication Engineerin

GATE 2018Set CombinedQ37MCQanswer keyexplanation soonhard

Electronics and Communication Engineering · Analog Electronics - BJT Biasing

Concept intelligence

Jump into a concept drill from this question.

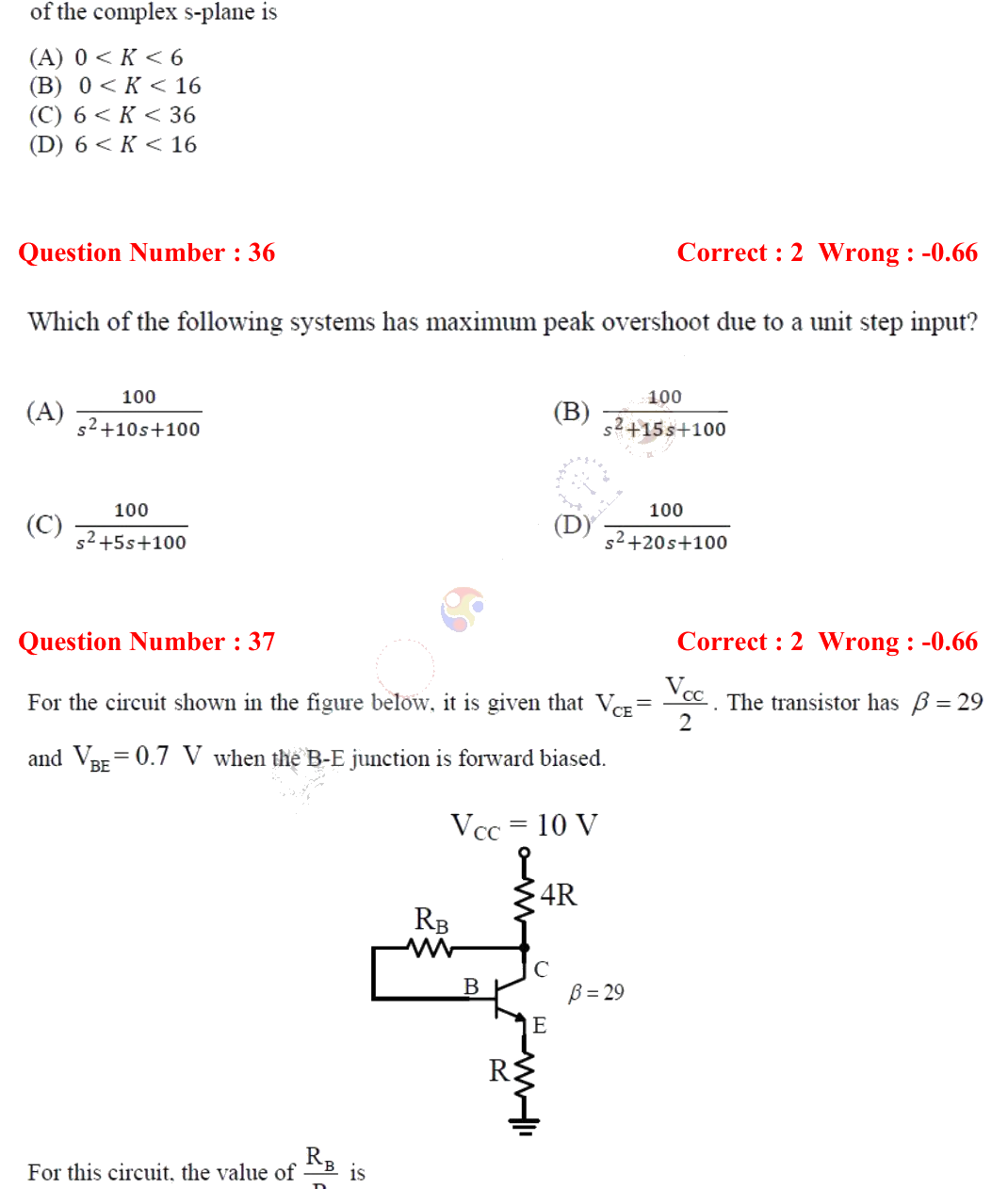

Figure from the original GATE 2018 paper. (IIT Guwahati archive)
