A phase controlled single phase rectifier, supplied by an AC source, feeds power to an R-L-E load as shown in the figure. The rectifier output voltage has an average value given by Vo= Vm/2π (3 + cos α), where Vm = 80π volts and α is the firing angle. If the power delivered to the lossless battery is 1600 W, α in degree is ________ (up to 2 decimal places).

GATE 2018 Electrical Engineering Q49 — Electrical Engineering

GATE 2018Set CombinedQ49NATanswer keyexplanation soonhard

Electrical Engineering · Power Electronics - Rectifiers

Concept intelligence

Jump into a concept drill from this question.

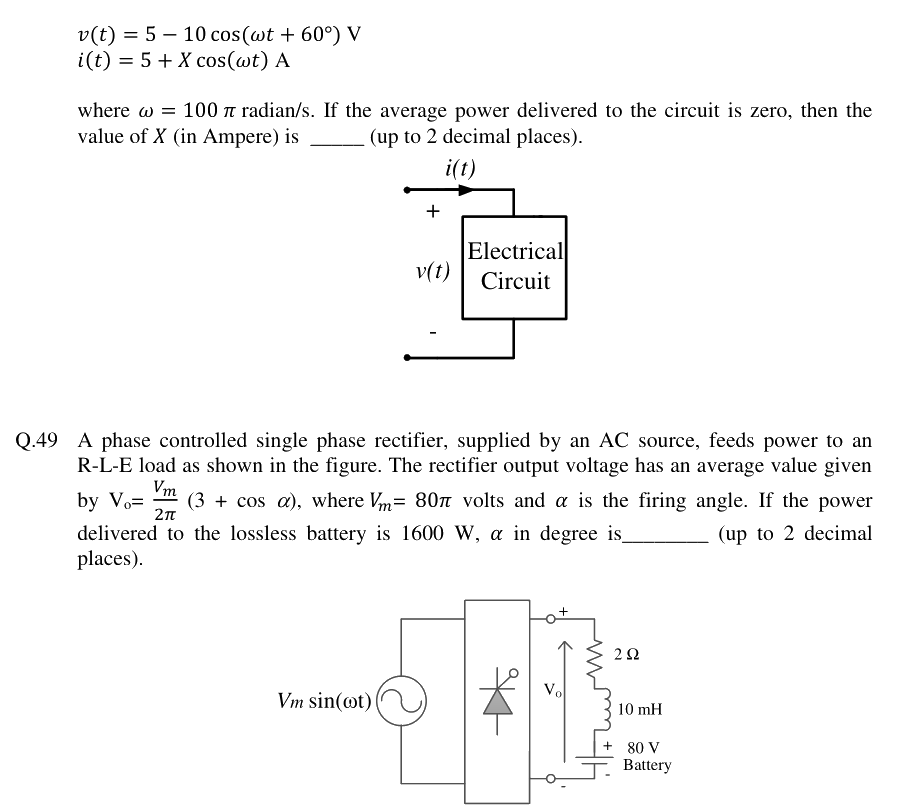

Figure from the original GATE 2018 paper. (IIT Guwahati archive)
