GATE 2026 Electrical Engineering Q29

Question

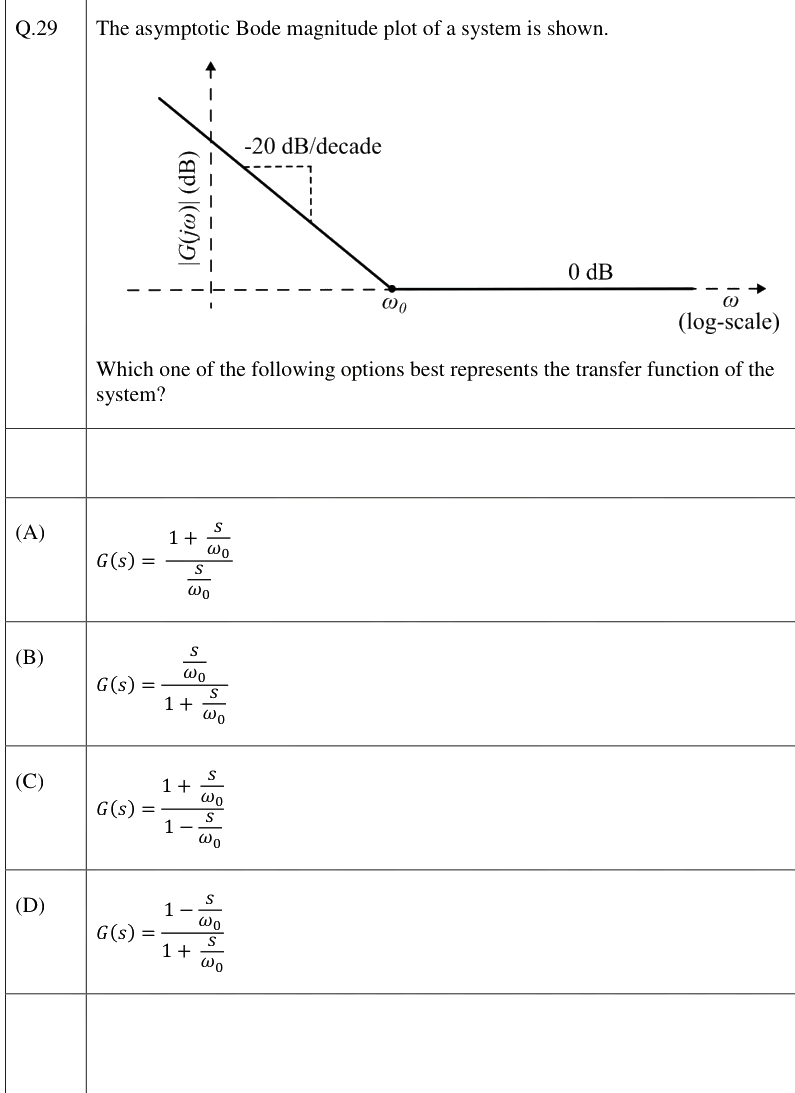

The asymptotic Bode magnitude plot of a system is shown.
Which one of the following options best represents the transfer function of the system?

Accepted Answer

$G(s) = \frac{1 + \frac{s}{\omega_0}}{\frac{s}{\omega_0}}$

Answer

$G(s) = \frac{\frac{s}{\omega_0}}{1 + \frac{s}{\omega_0}}$

Answer

$G(s) = \frac{1 + \frac{s}{\omega_0}}{1 - \frac{s}{\omega_0}}$

Answer

$G(s) = \frac{1 - \frac{s}{\omega_0}}{1 + \frac{s}{\omega_0}}$
