GATE 2019Set 1Q54NATanswer keyexplanation soonhard
Civil Engineering · Geotechnical Engineering - Earth Pressure & Retaining Structures
Concept intelligence
Jump into a concept drill from this question.
Mastery map →
underpass constructionjackingshear failurefactor of safetysoil properties
Back to GATE 2019PreviousNext question

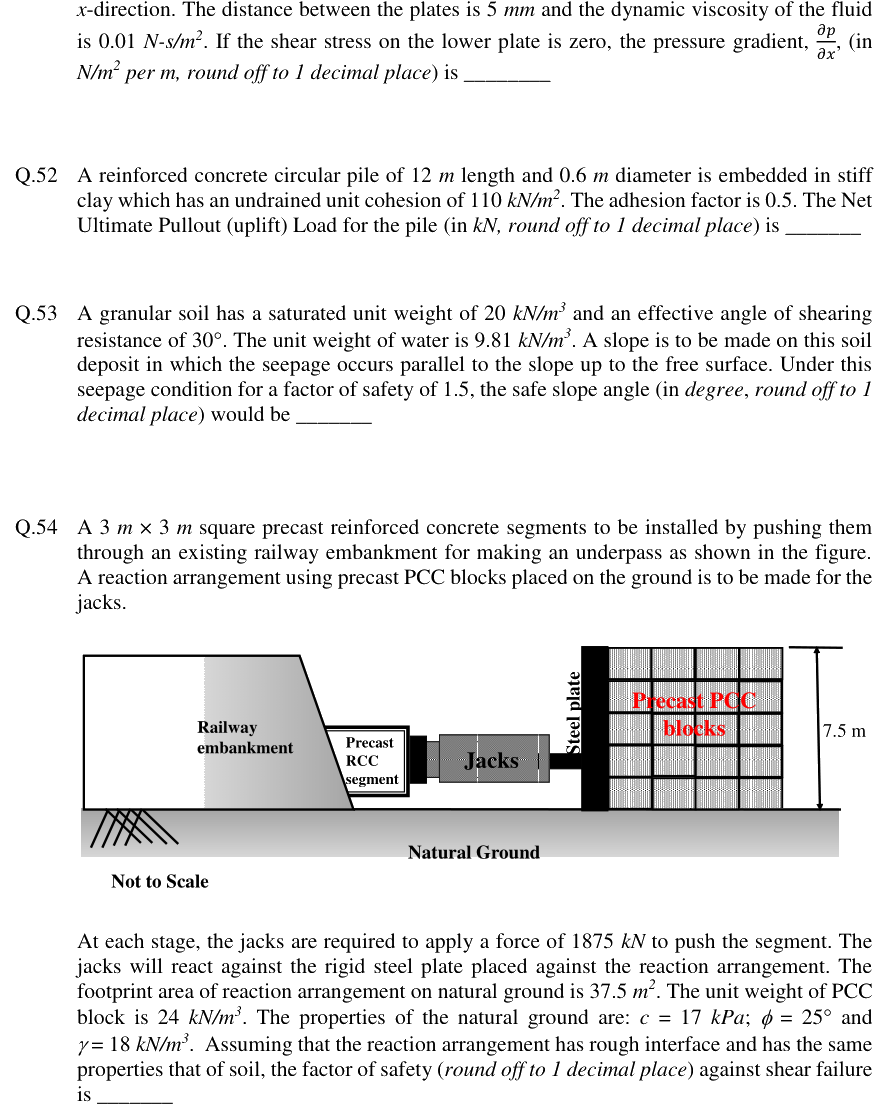

Figure context for GATE 2019 Q54
Figure from the original GATE 2019 paper. (IIT Madras archive)
Studying seriously for GATE CSE?

Keep browsing free. Pro unlocks the paid study loop: explanations, topic mastery, mistake notebook, and custom PYQ drills.

See GATE CSE betaOpen notebook
📊 has diagram∑ has math
underpass constructionjackingshear failurefactor of safetysoil properties
