Consider the built-up column made of two I-sections as shown in the figure, with each batten plate bolted to a component I-section of the column through 6 black bolts. Each connection of the batten plate with the component section is to be designed for a longitudinal shear of 70 kN and moment of 10 kN.m. The minimum bolt value required (in kN) is ____________ (rounded off to the nearest integer).

GATE 2025 Civil Engineering Q54 — Civil Engineering

GATE 2025Set 1Q54NATanswer keyexplanation soonmedium

Civil Engineering · Structural Engineering - Steel Structures

Concept intelligence

Jump into a concept drill from this question.

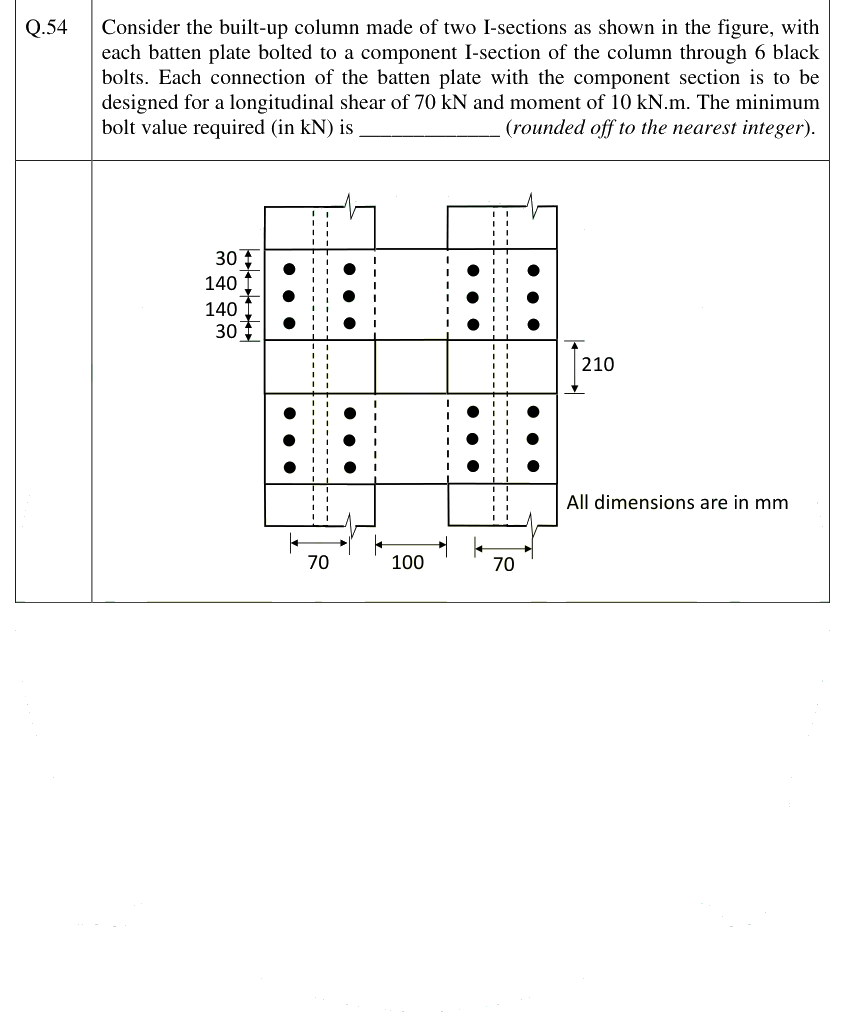

Figure from the original GATE 2025 paper. (IIT Roorkee archive)
