The figure shows a vertical retaining wall with backfill consisting of cohesive-frictional soil and a failure plane developed due to passive earth pressure. The forces acting on the failure wedge are: P as the reaction force between the wall and the soil, R as the reaction force on the failure plane, C as the cohesive force along the failure plane and W as the weight of the failure wedge. Assuming that there is no adhesion between the wall and the wedge, identify the most appropriate force polygon for the wedge.

GATE 2023 Civil Engineering Q42 — Civil Engineering

GATE 2023Set 2Q42DIAGRAManswer keyexplanation soonmedium

Civil Engineering · Geotechnical Engineering - Earth Pressure

Concept intelligence

Jump into a concept drill from this question.

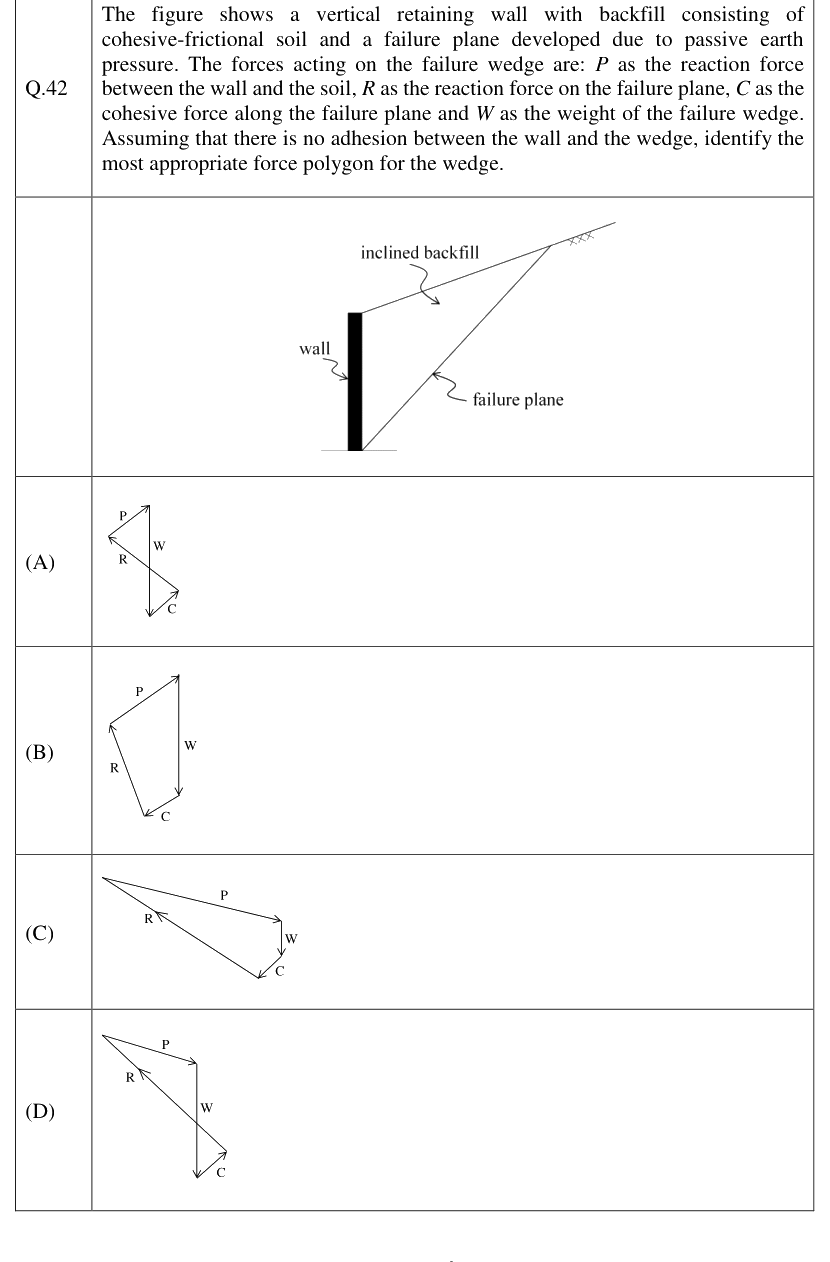

Figure from the original GATE 2023 paper. (IIT Kanpur archive)
