A plane frame shown in the figure (not to scale) has linear elastic springs at node H. The spring constants are kx = ky = 5 × 10^5 kN/m and kθ = 3 × 10^5 kNm/rad. For the externally applied moment of 30 kNm at node F, the rotation (in degrees, round off to 3 decimals) observed in the rotational spring at node H is _________

GATE 2019 Civil Engineering Q37 — Civil Engineering

GATE 2019Set 2Q37NATanswer keyexplanation soonhard

Civil Engineering · Structural Analysis - Frame Analysis

Concept intelligence

Jump into a concept drill from this question.

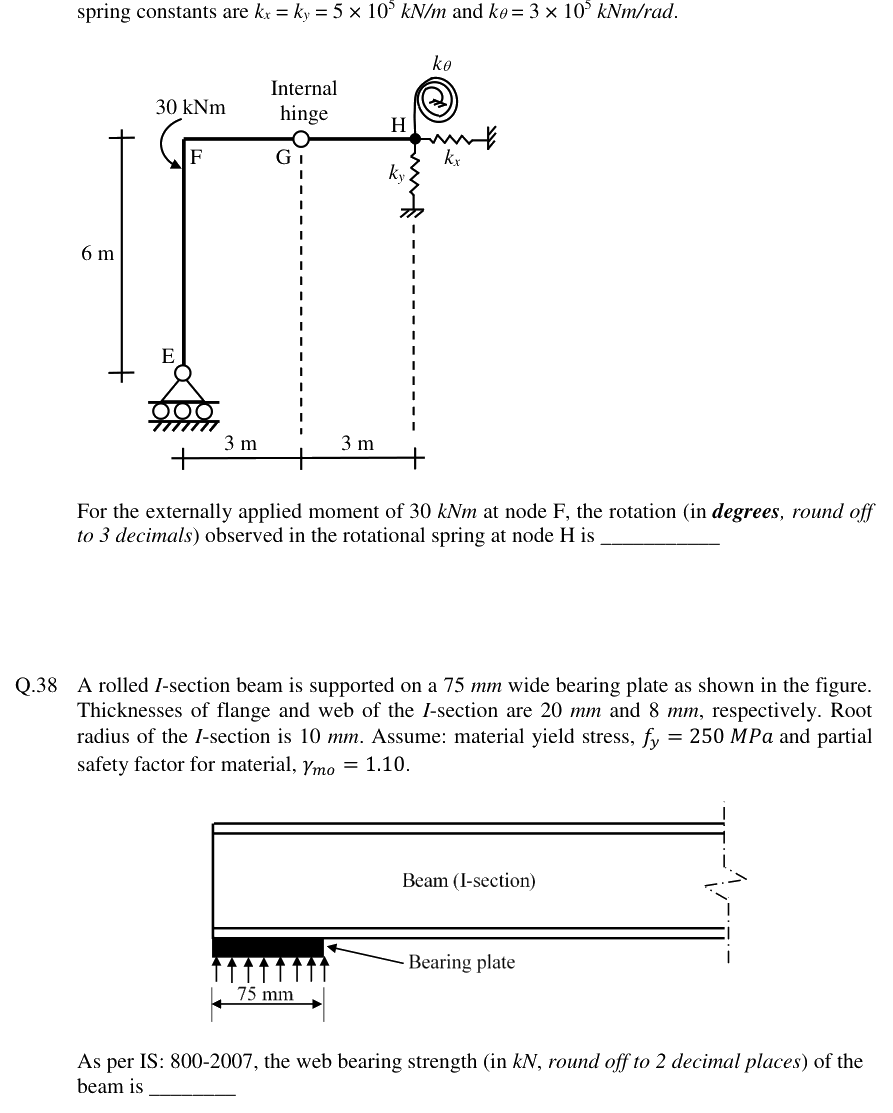

Figure from the original GATE 2019 paper. (IIT Madras archive)
